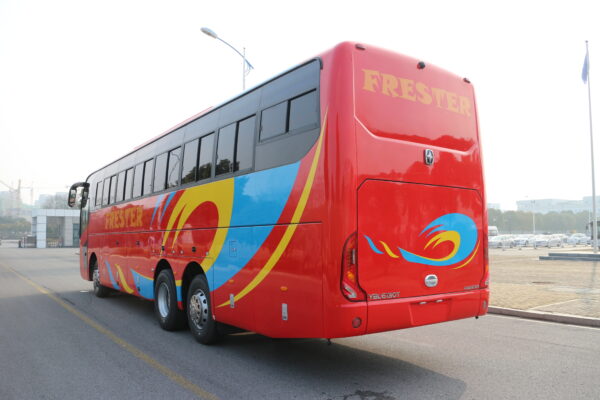

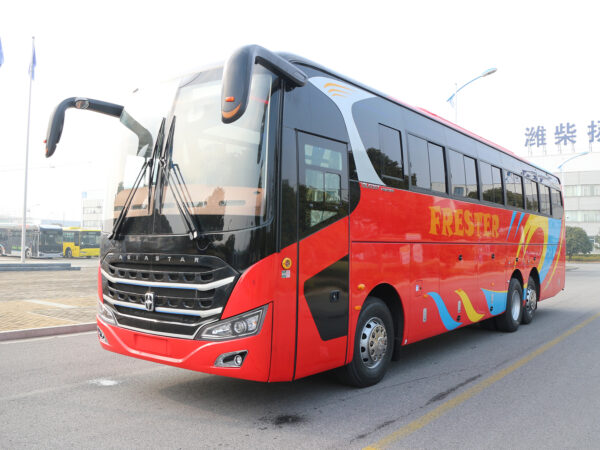

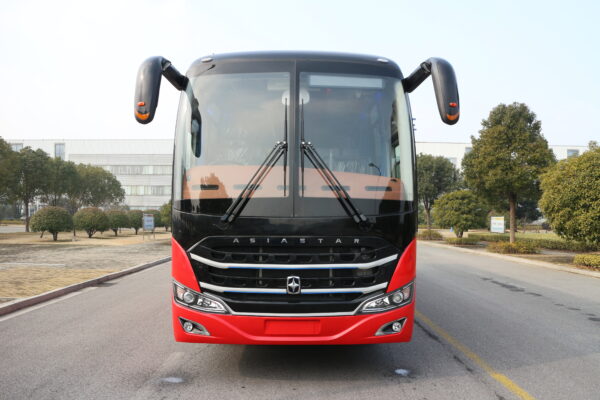

LHD Asia Star 6130T(Diesel)
-
Powerful engine, ideal for long-distance transport
-

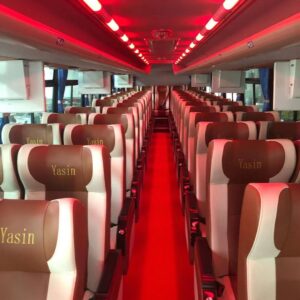

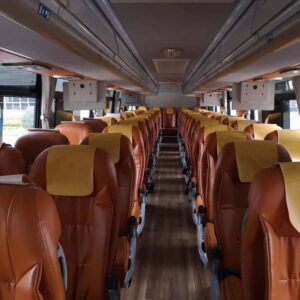

70-seat layout, high passenger capacity
-
Full safety features, strong protection
-

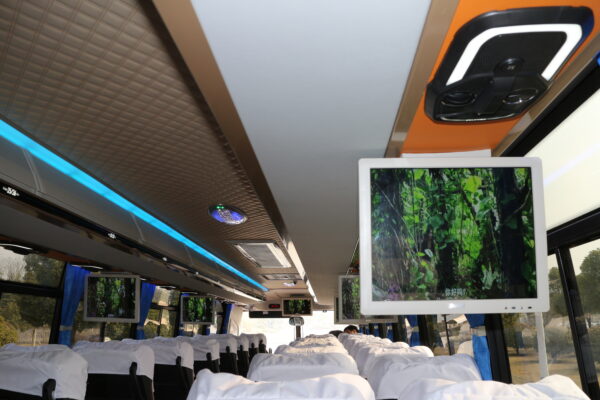

Comfortable A/C, great ride experience
-
Durable structure, low maintenance cost
The Asia Star YBL6130T diesel midibus is a high-performance vehicle designed for group tours and intercity transportation. It measures 12.6 meters in length and 2.55 meters in width, equipped with a Weichai WP10.375 engine producing a maximum power of 276 kW and a peak torque of 1460 Nm, meeting Euro III emission standards. The bus offers 70 seats in a 2+2 layout, featuring air conditioning, ABS, airbags, and other safety equipment for a comfortable ride. Its chassis is made of high-strength materials with multi-leaf spring suspension, ensuring stability on various road conditions. Additionally, the modern and stylish design makes it suitable for long-distance travel and shuttle operations, offering high cost-effectiveness and easy maintenance.
YBL6130T (Front Engine) Tourist Bus Specification
| Dimensions (mm)L*W*H | 12630×2550×3900
(with A/C) |
Max weight (kg) | 21000 | |
| Front suspension/wheel base/rear
suspension (mm) |
2300/5500+1350/3480 | Max speed (km/h) | 120 | |
| Approach angle/Departure angle (°) | 13/10 | Seat number | 65 (2+3 seat layout) | |
| Item | Configuration | |||
| Power | Engine | Weichai WP10.375 (Euro 3) | ||
|
Body |
Frame | Three-section, the whole vehicle electrophoresis process, flat floor | ||
| Front face | New front face | |||
| Floor | Flat floor, through type compartment | |||
|
Driving system |
Suspension |
Multiple leaf springs for front and rear axles (front and rear horizontal
stabilizer bar), the tag axle 2 airbags air suspension |
||
| Front axle | Dongfeng 8-ton front axle, drum brake | |||
| Second axle | Dongfeng 13-ton rear axle, fine grinding, drum brake | |||
| Tag axle | Dongfeng 5.5-ton tag axle | |||
| Tyre | Standard 315/80R22.5 tyre (8+1 ,with spare tyre) | |||
| Wheel rim | Steel rim | |||
|
Operation system |

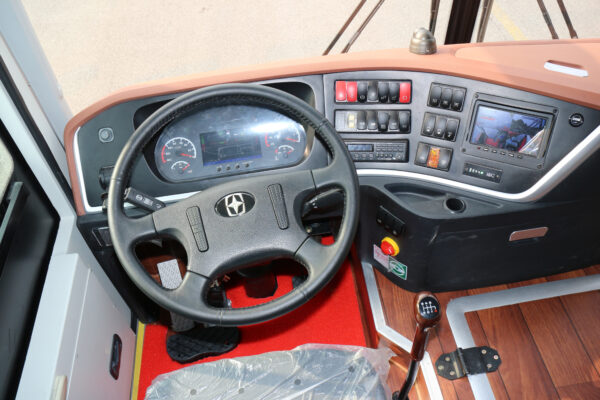

Steering | Integral power steering (LHD) | ||
| Steering wheel | Four-way adjustable, standard steering wheel | |||
| Body lift | None | |||
|
Brake |
ABS | Kormee ABS | ||
|
Brake system |
Double-circuit air brake, front and rear drum brake, energy storage spring parking brake (gas tank bolted connected to the frame), drum
bridge is equipped with automatic adjustment arm |
|||
| Retarder | Eddy current retarder (cancel retarder handle function) 2400N·M | |||
| Air cylinder | Steel gas storage cylinder, automatic water discharge valve | |||
