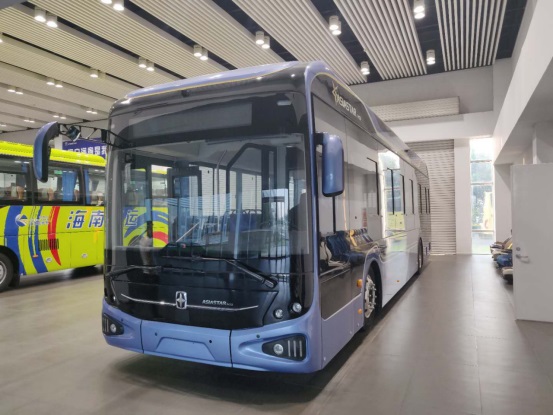

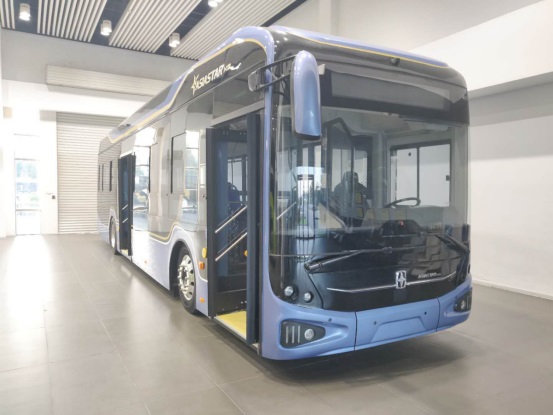

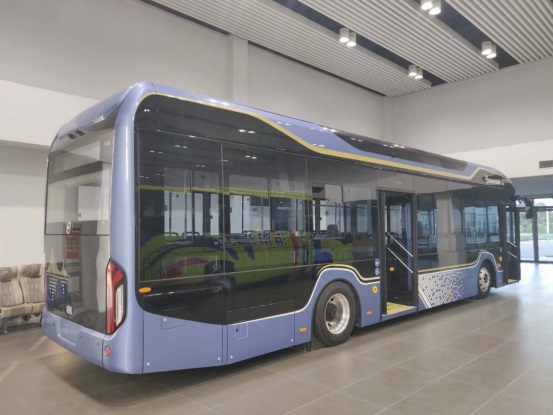

LHD Asia Star JS6128 (Diesel)

Powerful & Efficient Engine – Equipped with a Weichai WP7.270E31 diesel engine (199KW, 1160N·m), delivering strong performance while meeting Euro III emission standards.
Enhanced Safety Features – Includes ABS, front disc/rear drum brakes, Telma retarder, and an automatic fire suppression system for reliable urban operation.
Spacious & Comfortable Interior – Offers 28+1 seating, bamboo flooring, LED lighting, and roof-mounted AC (30,000 kcal) for a pleasant passenger experience.
Durable & Low-Maintenance Design – Features a semi-load-bearing frame, steel wheel rims, and wear-resistant flooring for long-term cost efficiency.
Smart Driver & Passenger Convenience – Comes with a 7-inch reverse monitor, USB charging, electronic displays, and sliding windows for modern transit needs.

The JS6128GH is a 12-meter Euro III diesel city bus powered by a Weichai WP7.270E31 engine (199KW, 1160N·m) with a maximum gross weight of 18 tons and a seating capacity of 28+1/88-94 passengers. It features front and rear stabilizer bars, front disc/rear drum brakes, a Telma eddy current retarder (DX1700), and a SONGZ roof-mounted non-independent air conditioning system (30,000 kcal). The interior includes a luxury instrument panel, wear-resistant flooring, and bamboo flooring, while safety features consist of an automatic fire suppression system, emergency hammers, and a reverse monitoring system. The exterior is coated with imported plain paint, ensuring both comfort and reliability for urban transit operations.

Vehicle model		JS6128GH
Overall dimensions (mm)		12000 x 2550 x 3120,3380, 3240 (air conditioning)		Maximum total mass (kg)	18000
Front overhang/ Wheelbase/rear overhang (mm)		2650/5900/3450		Maximum speed	69
Approach angle/departure angle (°)		〉7/7		Seating capacity/number of passengers	28+1/88,94
Project	Configuration Items		Standard Configuration
Power system	Engine		Weichai WP7.270E31 (199KW, 1160N. M, Euro III)
Structural type	Frame form		Semi load bearing
	Floor structure		Two level steps
	Body design		X9-C
Driving system	Suspension		4/5 fewer leaf springs, front and rear stabilizer bars
	Front axle		Hande 6.5T disc front axle
	Rear axle		Hande 13T drum type rear axle (finely ground teeth)
	Tyre		Giti 12R22.5 Tubeless Radial Tire (Vacuum Tire)
	Wheel rim		Steel wheel rim
Control system	Steering gear		Domestic integrated power steering
	Steering wheel		Four way adjustable, regular steering wheel
Braking system	ABS		Domestic Kemi ABS
	Brakes		Pneumatic dual circuit driving brake, front disc and rear drum brake, energy storage spring parking brake, rear axle equipped with automatic adjustment arm
	Retarder		Tailema eddy current retarder DX1700
	Air storage cylinder		Steel gas storage cylinder and automatic drain valve
