LHD Asia Star YBL6119BEV (EV)

Zero-Emission Electric Drive – Features a high-capacity 300.8kWh CATL battery and efficient water-cooled motor, delivering clean energy performance with zero tailpipe emissions.
Long-Range & Reliable – Equipped with advanced battery management and cooling systems for extended range and stable operation in various climates.

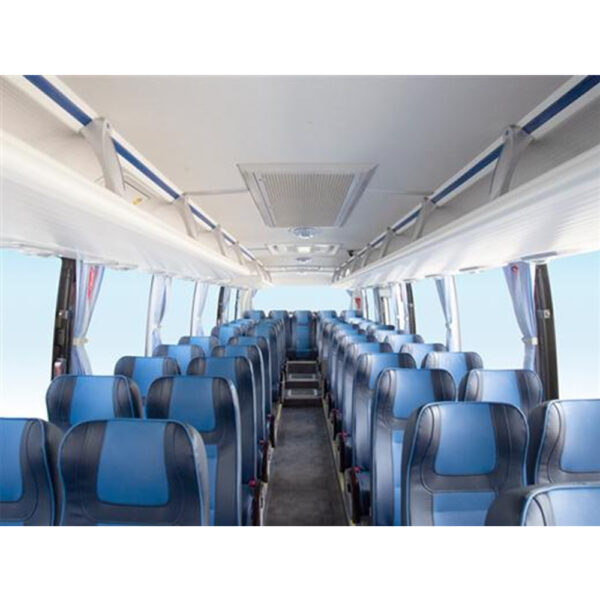

Premium Passenger Comfort – Offers 47 high-back faux leather seats, air suspension, and smart climate control for a smooth, quiet ride.
Advanced Safety Features – Includes WABCO ABS, automatic fire suppression, 360° monitoring, and reinforced battery protection for maximum safety.
Smart Connectivity – Integrated CAN bus, GPS tracking, and multiple USB ports enable real-time monitoring and passenger convenience.

The YBL6119HBEV is a 10.9-meter all-electric coach powered by a 300.8kWh CATL lithium iron phosphate battery and a TZ380XSWT120B permanent magnet synchronous motor (water-cooled). It features 47 high-back faux leather seats, air suspension, and front/rear disc brakes with WABCO ABS. The vehicle includes roof-mounted A/C with auxiliary heating, aluminum alloy doors, and 7-inch color reverse monitoring. Safety systems include automatic fire suppression and battery temperature alarms. Designed for group travel, it offers USB charging ports, GPS tracking, and lightweight full-load-bearing construction. An eco-friendly, high-performance electric coach for modern transit needs.

Overall specification	Overall length(mm)总长	10990
	Overall width(mm)总宽	2550
	Overall height(mm)总高	3525（3670 with AC）
	Wheel base (mm)轴距	5580
	F/R overhang(mm)前后悬	2260/3150
	Max GVW(kg)最大总质量	18000
	Seat capacity 载客数	47
	Max speed(km/h)最高车速	90
Seq	Item	Standard
1	Power Battery 动力电池	lithium iron phosphate Battery 300.8Kwh（CATL), (9 cases, energy density > 135kw/ kg) with battery management system 宁德时代磷酸铁锂电池300.8度电，（9箱，能量密度＞135kw/ kg）带电池管理系统
2	Driving motor 驱动电机	Drive Motor: TZ380XSWT120B limited speed 90km/h, with motor water cooling system 潍柴TZ380XSWT120B，带限速装置（90km/h），配电机水冷系统
3	High voltage distribution system 高压配电系统	High voltage distribution system，DC/DC、DC/AC converter and control system 高压配电系统，DC/DC直流转换、DC/AC直交流转换控制系统
