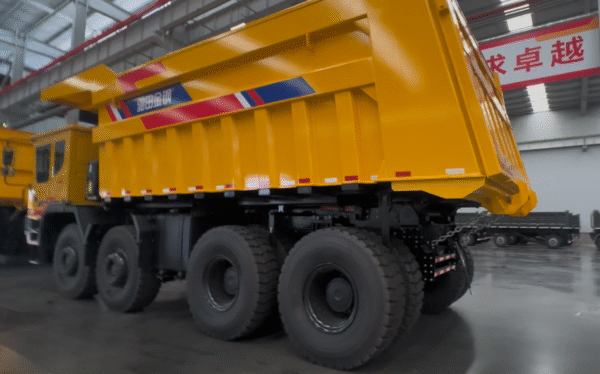

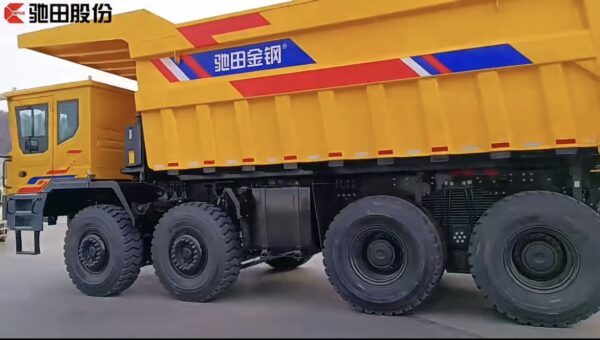

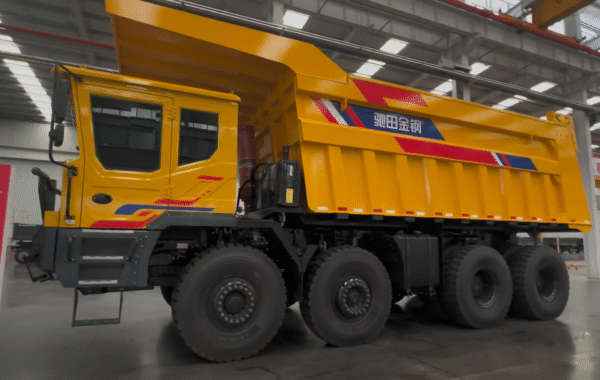

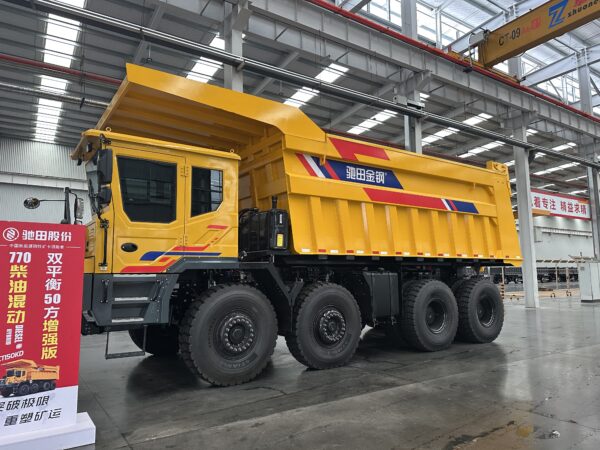

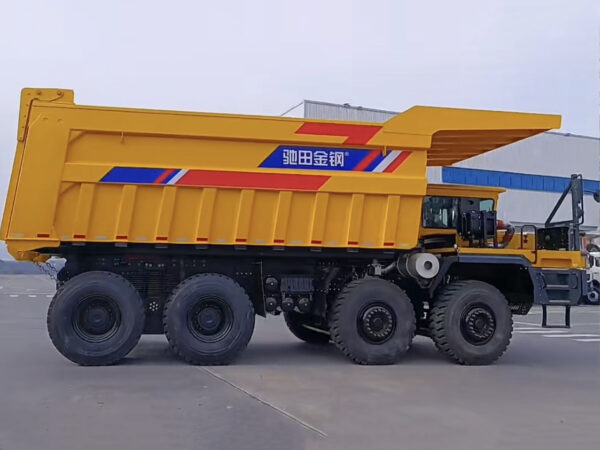

LHD Chitian 150ton Mining Dumpper （Diesel)

Unmatched 100-Ton Payload Capacity
Engineered for maximum productivity, this dumper handles a massive 100-ton payload with a robust chassis and 180T balanced suspension, ensuring reliable heavy-load transport in the most demanding mining conditions.
High-Power Mining-Specific Engine
Features a dedicated 770 HP FAW Xichai engine, delivering exceptional torque and power for superior performance on steep grades and rugged terrain, ensuring high job site efficiency.
Durable High-Strength Construction
Built with an NM450 steel cargo box and a high-strength flexible frame (12+12+12), it offers extreme durability and a long operational life, resisting impact and abrasion in tough mining environments.
Enhanced Safety & Traction Control
Equipped with dual-circuit air brakes, an engine exhaust brake, and an inter-axle differential lock for excellent braking performance and guaranteed traction, providing critical safety on unstable ground.
Operator-Focused Design for Comfort
The tilting narrow cab with a fully adjustable hydraulic seat and a safety assistance system reduces operator fatigue, supporting focus and productivity during long, challenging shifts.

The Chitian 150-ton Mining Dumper is a high-capacity, heavy-duty hauler engineered for the most demanding mining operations. With a gross vehicle weight of 150 tons and an impressive payload capacity of 100 tons, it is built to maximize productivity and efficiency. The dumper features robust overall dimensions of 10100x4000x4400 mm and an 8×4 drive configuration, ensuring superior stability and traction on challenging terrain.

Its upper equipment includes a large 53 m³ cargo box constructed from high-strength NM450 steel (12/16 mm thick), designed for durability and longevity. The standard bed heating system prevents material adhesion in cold climates. Power is delivered by a dedicated 770 HP FAW Xichai mining engine (Euro 3), coupled with an 8DS280 transmission and full hydraulic steering for responsive control.

The chassis is built with a high-strength flexible steel frame and features a patented 180T balanced leaf-spring suspension system for excellent load distribution and ride comfort. Safety is prioritized with dual-circuit air brakes, an engine exhaust brake, and an inter-axle differential lock. Key operational features include an electric multi-stage dust air filter and an 800L fuel tank with heating capability. Designed for reliability and performance, this dumper is an ideal solution for large-scale, high-intensity mining transport needs.

主参数 Main Parameters	整车总质量(T)	Gross Vehicle Weight (T)	150	150
	载质量(T)	Payload Capacity (T)	100	100
	整备质量(T)	Curb Weight (T)	49	49
	外形尺寸(mm)	Overall Dimensions (mm)	10100x4000x4400	10100x4000x4400
	驱动形式	Drive Type	8×4	8×4
	轴距(mm)	Wheelbase (mm)	1820+2700+1800	1820+2700+1800
	轮距(mm)	Track Width (mm)
	最高车速(km/h)	Maximum Speed (km/h)	40	40
	最大爬坡度(%)	Maximum Gradeability (%)	32	32
	最小转弯直径(m)	Minimum Turning Diameter (m)	25	25
	最小离地间隙(mm)	Minimum Ground Clearance (mm)	400	400
	驻坡度	Parking Gradeability	30(上坡)/20(下坡)	30 (Uphill)/20 (Downhill)
