LHD CLW Straight arm aerial work vehicle （Diesel）

Industry-Leading Reach & Stability

27m maximum working height with 16m horizontal outreach
V/H-type outriggers provide superior stability on uneven terrain
250kg platform capacity meets heavy-duty tool/worker requirements

Premium European Hydraulic System

Italian electro-proportional valves for smooth, precise movements
German CAN-bus control system ensures intelligent safety interlocks
Emergency descent function (backup electric pump) guarantees operator safety

Unmatched Operational Flexibility

360° continuous rotation with 6-section synchronized boom
Triple control modes: Platform + Ground console + 100m wireless remote
105km/h road speed enables quick site transfers

Urban-Optimized Design

Compact 5.99m length fits blue plate registration requirements
Low 3.1m transport height clears standard urban obstacles
Euro 6 compliant for environmentally sensitive areas

Reliability You Can Trust

3-year warranty + lifetime structural guarantee
ISO-certified manufacturing (9001/14001/45001)
24/7 technical support with 1-hour emergency response commitment

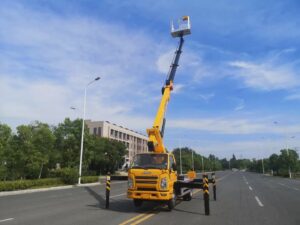

The CL5046JGK6DS is a 27-meter telescopic boom lift built on a JMC JX1041TC26 chassis (Euro 6 compliant) with 115HP Isuzu diesel engine, designed for high-efficiency aerial operations. Its 6-section hexagonal boom enables 360° continuous rotation and 16m max outreach, supporting 250kg platform capacity. Key features include V/H outriggers, electro-hydraulic controls, and triple operation modes (platform/ground/wireless). With CAN-bus system, emergency descent, and imported Italian/German hydraulic components, it ensures safety and reliability. Compact dimensions (5998×2050×3100mm) and blue plate compliance make it ideal for urban use.
