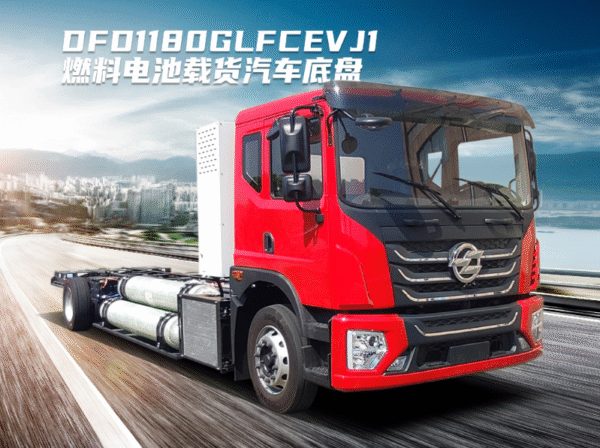

LHD Dongfeng DFD1180GLFCEVJ1(Hydrogen Fuel Cell)
-
Dual hydrogen fuel cells provide up to 700 km range, ideal for long-distance logistics.
-
Powerful 360 kW motor ensures strong performance and efficient transportation.
-
Equipped with rear air suspension for improved ride comfort and cargo stability.
-
Features ADAS, ABS, and Beidou GPS for enhanced safety and intelligent driving.
-
Environmentally friendly with zero tailpipe emissions, supporting green logistics.
The DFD1180GLFCEVJ1 is a semi-trailer tractor powered by a hydrogen fuel cell and battery hybrid system, ideal for medium to long-distance logistics transport. It features a permanent magnet synchronous motor with a peak power of 360 kW and dual fuel cell stacks, offering a driving range of up to 700 km. The vehicle is equipped with Dongfeng Dana axles, Fast transmission, rear air suspension, ADAS system, air conditioning, and a Beidou positioning driving recorder. With excellent comfort, energy efficiency, and environmental performance, it is an ideal choice for green logistics operations.
| 整车参数Basic Parameters | 总长
Total length( mm ) |
10600 | 动力系统Power system | 电机型号
Motor model |
TZ420XSTKQ001 |
| 总宽
Overall width( mm ) |
2530 | 电机厂家
Motor manufacturer |
东风特汽(十堰)客车有限公司
Dongfeng Special Vehicle Co., Ltd. |
||
| 总高
Overall height( mm ) |
2780/2820 | 位置/燃油形式Location/Fuel Form | 中置/氢燃料电池Mid-mounted/hydrogen fuel cell | ||
| 轴距
Wheelbase( mm ) |
7150 | 电机形式
Motor form |
永磁同步电机
Permanent magnet synchronous motor |
||
| 前悬/后悬
Front/rear suspension ( mm ) |
1260/2190 | 电机额定/峰值功率Motor rated/peak power ( kw ) | 215/360 | ||
| 接近角/离去角
Approach angle/departure angle (°) |
21/17 | 额定/峰值扭矩Rated/peak torque(Nm) | 1200/2400 | ||
| 整备质量
Curb weight ( kg ) |
9050 | 电池总容量
Total battery capacity ( kwh ) |
105.28kWh CATL | ||
| 最大总质量
Maximum total mass ( kg ) |
18000 | 续驶里程
Driving range (40 km /h constant speed method) |
60(Purely Electric Powered)/700 | ||
| 额定乘员数
Rated number of passengers (person) |
2 | 燃料电池额定/峰值功率
Fuel cell rated/peak power (kw) |
92/93(双电堆）
92/93 (dual fuel cell stacks) |
||
| 最高车速
Maximum speed ( km /h) |
79 | 氢瓶容积
Hydrogen bottle volume(L) |
4*320+3*210=1910 L/大连洺源
4320 + 3210 = 1910 L / Dalian Mingyuan |
||
| 轮距（前/后）
Track (front/rear)(mm) |
2036/1860 | 电堆厂家
Pile manufacturer |
大连洺源
Chinese brand |
||
