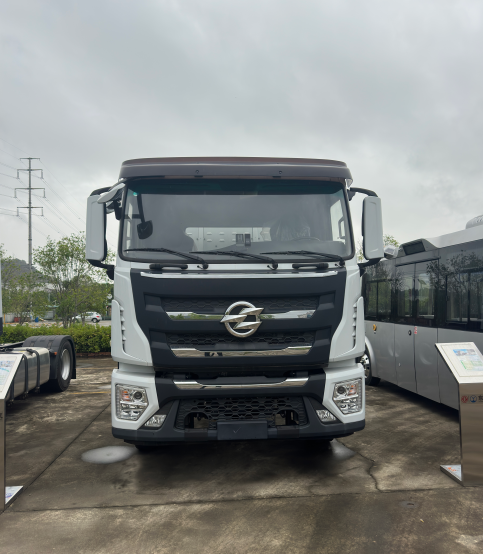

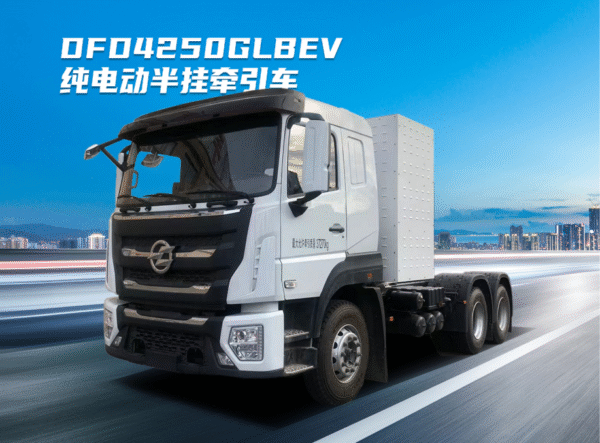

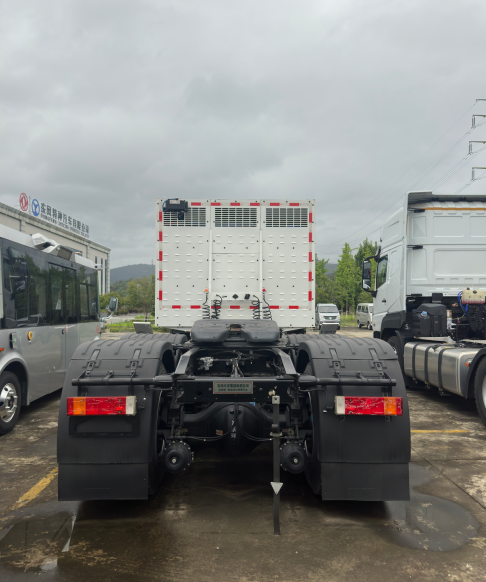

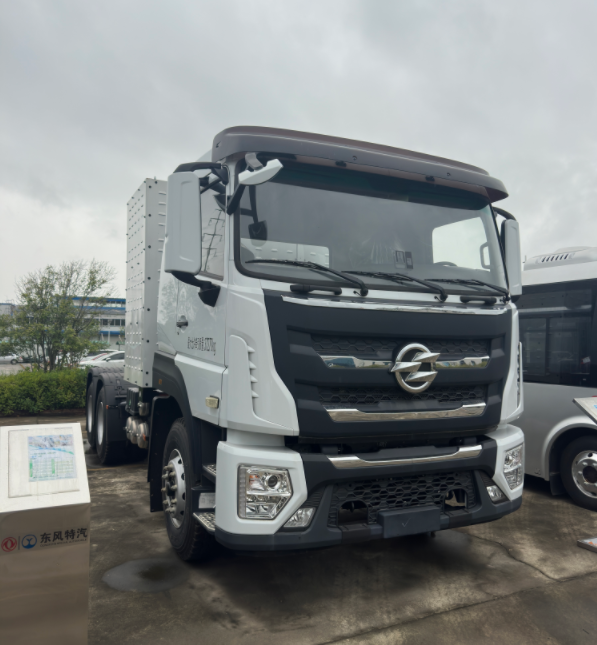

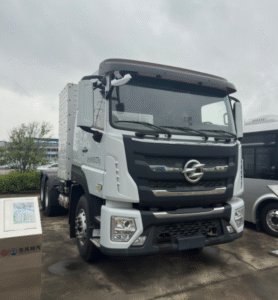

LHD Dongfeng DFD4250GLBEV(EV)
-
High-performance 360 kW electric motor delivers strong traction for heavy-duty logistics.
-
274.68 kWh battery offers up to 255 km range, ideal for regional transport.
-
Equipped with ADAS and ESC for enhanced driving safety and control.
-
Airbag suspension seats and climate control ensure driver comfort.
-
Remote monitoring with Beidou GPS and T-BOX system improves fleet management.
The Dongfeng DFD4250GLBEV is a fully electric tractor truck powered by a permanent magnet synchronous motor with a peak output of 360 kW, delivering strong performance. It features a large 274.68 kWh battery, providing a driving range of up to 255 km, ideal for medium and short-distance logistics. The vehicle is equipped with waterproof Hande axles, an ADAS system, air suspension seats, and a heating/cooling air conditioning system, enhancing both safety and driving comfort. With a robust body structure, Beidou positioning, and remote monitoring system, it is a smart, efficient, and eco-friendly transport solution.
| 整车参数 Basic Parameters
|
总长（mm）
Total length( mm ) |
7590 | 动力系统参数 Power system | 电机型号
Motor model |
TZ420XSTKQ001 |
| 总宽（mm）
Overall width( mm ) |
2550 | 电机生产厂
Motor manufacturer |
东风特汽（十堰）客车有限公司
Dongfeng Special Vehicle Co.,Ltd |
||
| 总高（mm）
Overall height( mm ) |
3250/3330 | 位置/燃料形式
Location/Fuel Form |
中置/纯电动
Mounted/Purely Electric |
||
| 轴距（mm）
Wheelbase( mm ) |
3900+1350 | 电机形式
Motor form |
永磁同步电机
Permanent magnet synchronous motor |
||
| 前悬/后悬（mm）
Front/rear suspension ( mm ) |
1530/810 | 电机额定/峰值功率（kW）
Motor rated/peak power ( kw ) |
215/360 | ||
| 接近角/离去角（º）
Approach angle/departure angle (°) |
20/45 | 额定/峰值转矩（N.m）
Rated/peak torque(Nm) |
1200/2400 | ||
| 整备质量（kg）
Curb weight ( kg ) |
11600 | 电池总容量kWh
Total battery capacity ( kwh ) |
274.68kWh,电压平台592V，广州巨湾技研
274.68 kWh, voltage platform 592 V, Guangzhou Great Power Research Institute |
||
| 最大总质量（kg）
Maximum total mass ( kg ) |
25000 | 续驶里程（40km/h匀速法）
Driving range (40 km /h constant speed method) |
255km | ||
| 额定乘员数 （人）
Rated number of passengers (person) |
2 | ||||
| 最高车速（km/h）
Maximum speed ( km /h) |
85 | ||||
| 轮距（前/后）（mm）
Track (front/rear)(mm) |
2036/1860/1860 | ||||
