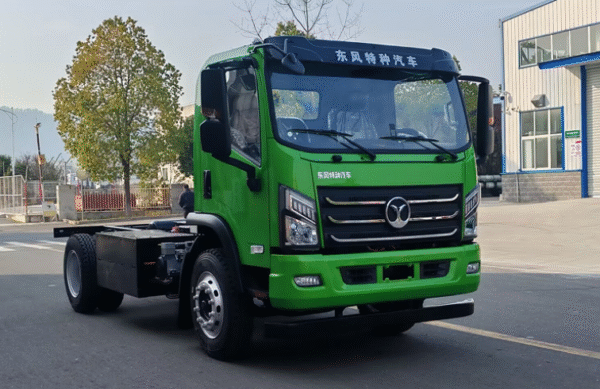

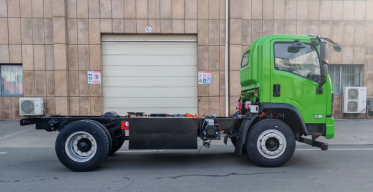

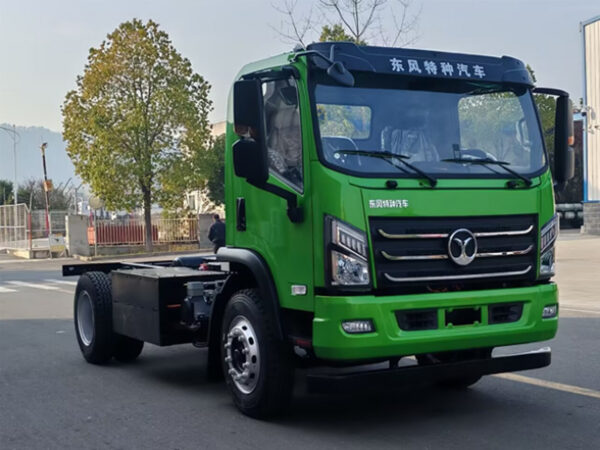

LHD Dongfeng EQ1120TTQEVJ(EV)
-
Equipped with a 163.43 kWh battery, it offers a driving range of up to 225 km, ideal for urban and regional logistics.
-
The powerful 180 kW motor delivers strong acceleration and a peak torque of 1200 Nm for heavy-duty performance.
-
Features a modern 10-inch multimedia system with camera support, enhancing driver convenience and safety.
-
Comfortable cabin with air suspension driver seat, air conditioning, and electric windows for an improved driving experience.
-
Built with durable Dongfeng Dana axles and air brake system with ABS, ensuring reliable and safe operation under load.
The Dongfeng EQ1120TTQEVJ is a mid-mounted, purely electric truck chassis equipped with a permanent magnet synchronous motor, delivering a peak power of 180 kW and a maximum torque of 1200 Nm. It features a high-capacity 163.43 kWh battery, providing a driving range of up to 225 km, ideal for medium- and short-distance urban logistics. The vehicle comes with hydraulic power steering, air brakes, ABS, a 10-inch multimedia system, air conditioning, and an air suspension driver seat, offering a safe and comfortable driving experience. With strong load-bearing capacity, it is a top choice for new energy logistics applications.
| 整车参数 Basic Parameters
|
总长（mm）
Total length( mm ) |
6080,6280 | 动力系统参数 Power system | 电机型号
Motor model |
TZ380XSTQG001 |
| 总宽（mm）
Overall width( mm ) |
2280 | 电机生产厂
Motor manufacturer |
湖北普旺汽车科技有限公司
Hubei Puwang Automobile Technology Co., Ltd. |
||
| 总高（mm）
Overall height( mm ) |
2650 | 位置/燃料形式
Location/Fuel Form |
中置/纯电动
Mounted/Purely Electric |
||
| 轴距（mm）
Wheelbase( mm ) |
3600、3800 | 电机形式
Motor form |
永磁同步电机
Permanent magnet synchronous motor |
||
| 前悬/后悬（mm）
Front/rear suspension ( mm ) |
1380/1100 | 电机额定/峰值功率（kW）
Motor rated/peak power ( kw ) |
100/180 | ||
| 接近角/离去角（º）
Approach angle/departure angle (°) |
17/35 | 额定/峰值转矩（N.m）
Rated/peak torque(Nm) |
550/1200 | ||
| 整备质量（kg）
Curb weight ( kg ) |
5000,5050 | 电池总容量kWh
Total battery capacity ( kwh ) |
亿纬163.43kWh,电压537.6 V
EVE 163.43 kWh, Voltage 537.6 V |
||
| 最大总质量（kg）
Maximum total mass ( kg ) |
11995 | 续驶里程（40km/h匀速法）
Driving range (40 km /h constant speed method) |
225km | ||
| 额定乘员数 （人）
Rated number of passengers (person) |
2，3 | ||||
| 最高车速（km/h）
Maximum speed ( km /h) |
85 | ||||
| 轮距（前/后）（mm）
Track (front/rear)(mm) |
1920/1860 | ||||
