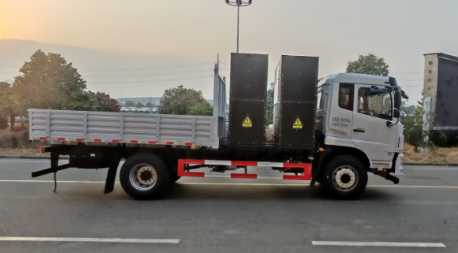

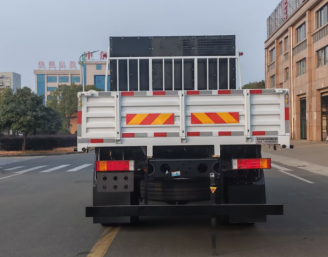

LHD Dongfeng EQ1180GTEV (EV)

Equipped with a massive 649.152 kWh battery, offering an ultra-long driving range of up to 640 km for extended operations.
Features a 200 kW permanent magnet motor, delivering strong torque and reliable power for demanding dump truck tasks.
Designed with a heavy-duty 18-ton GVW and reinforced double-layer frame for superior payload and durability.
Enhanced driver comfort with air conditioning, hydraulic power steering, and user-friendly interior layout.
Includes advanced safety features like dual-circuit air brakes, ABS, brake wear sensors, and T-BOX for smart monitoring.

The Dongfeng EQ1180GTEV is a high-performance pure electric dump truck equipped with a permanent magnet synchronous motor delivering a peak power of 200 kW. It features a large 649.152 kWh battery from Anchi, providing an impressive driving range of up to 640 km, meeting long-operation demands. With a gross vehicle weight of 18 tons, it offers strong loading capacity. The vehicle is equipped with hydraulic power steering, air conditioning, ABS, T-BOX, and more, ensuring comfortable driving and reliable safety—ideal for urban construction and engineering transport applications.

整车参数 Basic Parameters	总长（mm） Total length( mm )	8410	动力系统参数 Power system	电机型号 Motor model	TZ220XY201
	总宽（mm） Overall width( mm )	2550		电机生产厂 Motor manufacturer	精进电机 Jingjin Motor
	总高（mm） Overall height( mm )	3185/3245/3300/3400		位置/燃料形式 Location/Fuel Form	中置/纯电动 Mounted/Purely Electric
	轴距（mm） Wheelbase( mm )	4500		电机形式 Motor form	永磁同步电机 Permanent magnet synchronous motor
	前悬/后悬（mm） Front/rear suspension ( mm )	1500/2410		电机额定/峰值功率（kW） Motor rated/peak power ( kw )	100/200
	接近角/离去角（º） Approach angle/departure angle (°)	15/11		额定/峰值转矩（N.m） Rated/peak torque(Nm)	375/580
	整备质量（kg） Curb weight ( kg )	11500		电池总容量kWh/总电压V Total battery capacity ( kwh )/Total Voltage V	安驰649.152/579.6 Anchi 649.152 kWh / 579.6 V
	最大总质量（kg） Maximum total mass ( kg )	18000		续驶里程（40km/h匀速法） Driving range (40 km /h constant speed method)	640km
	额定乘员数（人） Rated number of passengers (person)	2，3
	最高车速（km/h） Maximum speed ( km /h)	89
	轮距（前/后）（mm） Track (front/rear)(mm)	1930/1830
