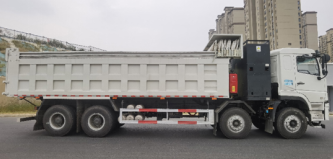

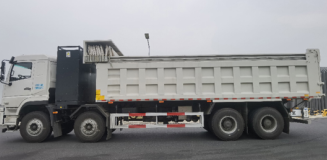

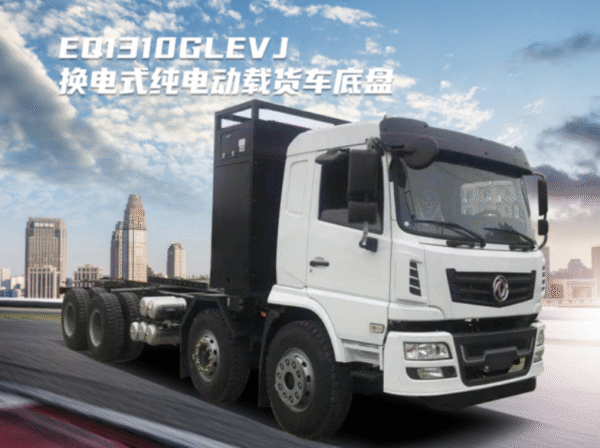

LHD Dongfeng EQ1310GLEVJ (EV)
1. High-Capacity Battery & Fast Swapping
Equipped with a massive 281.91kWh CATL battery and swappable tech, it ensures minimal downtime and 200km range—perfect for uninterrupted long-haul operations.
2. Exceptional Power & Torque
The 360kW motor delivers a staggering 2,500Nm peak torque, enabling heavy-load transport with smooth acceleration and zero emissions.
3. Heavy-Duty Chassis & Axles
Built with a reinforced DL710 frame and Hande axles (6.5T front/13T rear), it reliably handles max loads up to 31,000kg on tough terrains.
4. Advanced Safety & Comfort
Features ABS brakes, hydraulic steering, and a spacious TJG200 cab with air conditioning, ensuring safety and driver comfort for long journeys.
5. Eco-Friendly & Cost-Efficient
Zero emissions, lower maintenance, and swappable battery tech slash operational costs while meeting strict R100 sustainability standards.
The Dongfeng EQ1310GLEVJ is a high-performance electric truck chassis designed for heavy-duty logistics. With a robust 281.91kWh CATL battery and a 360kW motor (2,500Nm peak torque), it delivers a 200km range and supports fast battery swapping. Built on a durable DL710 frame with Hande axles (6.5T front, 13T rear) and multi-leaf suspension, it handles max loads up to 31,000kg. Features include hydraulic steering, ABS brakes, and a comfortable TJG200 cab with air conditioning. Ideal for long-haul routes, it combines zero emissions with low operating costs.
| 整车参数 Basic Parameters
|
总长（mm）
Total length( mm ) |
9040,10770 | 动力系统参数 Power system | 电机型号
Motor model |
TZ400XSTPG34 |
| 总宽（mm）
Overall width( mm ) |
2550 | 电机生产厂
Motor manufacturer |
特百佳动力科技有限公司
Tebajia Power Technology Co., Ltd. |
||
| 总高（mm）
Overall height( mm ) |
3400,3450 | 位置/燃料形式
Location/Fuel Form |
中置/换电式
Mounted/Swappable Battery Powered |
||
| 轴距（mm）
Wheelbase( mm ) |
1700+3450+1350
1950+4750+1400 |
电机形式
Motor form |
永磁同步电机
Permanent magnet synchronous motor |
||
| 前悬/后悬（mm）
Front/rear suspension ( mm ) |
1440/1100,1500/1040,1520/1150 | 电机额定/峰值功率（kW）
Motor rated/peak power ( kw ) |
240/360 | ||
| 接近角/离去角（º）
Approach angle/departure angle (°) |
21/45,15/40 | 额定/峰值转矩（N.m）
Rated/peak torque(Nm) |
1400/2500 | ||
| 整备质量（kg）
Curb weight ( kg ) |
11750,14500 | 电池总容量kWh
Total battery capacity ( kwh ) |
宁德时代281.91kWh
CATL 281.91 kWh |
||
| 最大总质量（kg）
Maximum total mass ( kg ) |
31000 | 续驶里程（40km/h匀速法）
Driving range (40 km /h constant speed method) |
200km | ||
| 额定乘员数 （人）
Rated number of passengers (person) |
2 | ||||
| 最高车速（km/h）
Maximum speed ( km /h) |
85 | ||||
| 轮距（前/后）（mm）
Track (front/rear)(mm) |
2036/2036/1860/1860,2050/2050/1870/1870 | ||||
