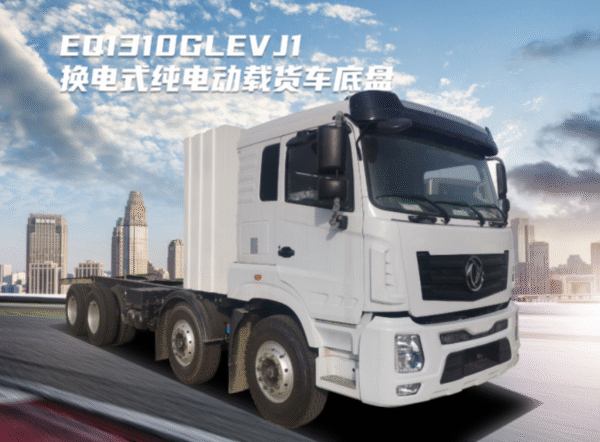

LHD Dongfeng EQ1310GLEVJ1 (EV)
1. Industry-Leading Battery Capacity
With a massive 350.1kWh swappable battery from EVE Power, this truck delivers reliable 150km range and ultra-fast battery swapping for continuous operation without lengthy charging downtime.
2. Unmatched Electric Powertrain Performance
Boasting a 410kW peak power motor generating 2,500Nm torque, this chassis delivers diesel-like hauling capability with smooth acceleration and zero emissions.
3. Heavy-Duty Construction for Demanding Loads
Engineered with reinforced DL710 frame, robust Hande axles (5.5T/11.5T), and heavy-duty 10/10/13 multi-leaf suspension to reliably handle maximum 31,000kg GCW in tough conditions.
4. Advanced Driver-Centric Features
Features AMT transmission for easier driving, full air-conditioned steel cab, and ergonomic mechanical damping seats to reduce driver fatigue during long hauls.
5. Smart Fleet Management Ready
Comes equipped with Beidou GPS tracking, T-BOX remote terminal, and OBD port for seamless fleet monitoring and optimized logistics operations.
Designed for demanding logistics operations, the Dongfeng EQ1310GLEVJ1 features a powerful 410kW motor (2,500Nm torque) and a massive 350.1kWh swappable battery from EVE, delivering 150km range. Its reinforced DL710 frame, Hande axles (5.5T front/11.5T rear), and heavy-duty 10/10/13 multi-leaf suspension support max loads up to 31,000kg. The truck includes AMT transmission, ABS brakes, and a comfortable steel cab with air conditioning. Ideal for heavy transport, it combines zero emissions with fast battery swapping for efficient operations.
| 整车参数 Basic Parameters
|
总长（mm）
Total length( mm ) |
9310 | 动力系统参数 Power system | 电机型号
Motor model |
TZ420XSTK04 |
| 总宽（mm）
Overall width( mm ) |
2535 | 电机生产厂
Motor manufacturer |
山东众联能创动力科技有限公司
Shandong Zhonglian Nengchuang Power Technology Co., Ltd. |
||
| 总高（mm）
Overall height( mm ) |
3150/3100 | 位置/燃料形式
Location/Fuel Form |
中置/换电式
Mounted/Swappable Battery Powered |
||
| 货厢尺寸（mm)
Cargobox size(mm) |
(5800-6200)*2350*1500 | 电机形式
Motor form |
永磁同步电机
Permanent magnet synchronous motor |
||
| 轴距（mm）
Wheelbase( mm ) |
1850+3200+1350 | 电机额定/峰值功率（kW）
Motor rated/peak power ( kw ) |
280/410 | ||
| 前悬/后悬（mm）
Front/rear suspension ( mm ) |
1500/1410 | 额定/峰值转矩（N.m）
Rated/peak torque(Nm) |
1400/2500 | ||
| 接近角/离去角（º）
Approach angle/departure angle (°) |
19/23 | 电池总容量kWh
Total battery capacity ( kwh ) |
亿纬动力350.1kWh
EVE 350.1 kWh |
||
| 整备质量（kg）
Curb weight ( kg ) |
12000 | 续驶里程（40km/h匀速法）
Driving range (40 km /h constant speed method) |
150km | ||
| 最大总质量（kg）
Maximum total mass ( kg ) |
31000 | ||||
| 额定乘员数 （人）
Rated number of passengers (person) |
2 | ||||
| 最高车速（km/h）
Maximum speed ( km /h) |
85 | ||||
| 轮距（前/后）（mm）
Track (front/rear)(mm) |
2036/2036/1860/1860 | ||||
