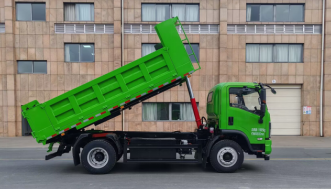

LHD Dongfeng EQ3120TTBEV (EV)
1. Zero-Emission Heavy Hauler
With pure electric power and 163.43kWh battery capacity, this dump truck delivers 225km range while eliminating exhaust emissions – perfect for eco-sensitive urban construction sites.
2. Robust Performance for Demanding Jobs
The 180kW motor generates massive 1,200Nm torque, providing diesel-like hauling power to handle 11,995kg GVW with smooth, quiet operation.
3. Ultra-Durable Workhorse Chassis
Built with reinforced DL610 frame, heavy-duty Dana axles (3T/8T), and multi-leaf suspension to withstand rigorous daily use in mining and construction environments.
4. Smart Safety & Monitoring Systems
Comprehensive protection with ESC stability control, ABS brakes, TPMS, and wear sensors ensures safe operation even under full load conditions.
5. Operator-Focused Cabin Design
Features air-suspension seats, 10″ touchscreen, climate control and electric windows to reduce driver fatigue during repetitive short-haul cycles.
The Dongfeng EQ3120TTBEV is an eco-friendly electric dump truck designed for urban construction and mining operations. Powered by a 180kW motor (1,200Nm torque) and equipped with a 163.43kWh EVE battery, it delivers a 225km range. The robust DL610 chassis features Dana axles (3T front/8T rear) and multi-leaf suspension, supporting up to 11,995kg GVW. With ESC/ABS safety systems, 10-inch multimedia display, and air-suspension seats, it combines performance with driver comfort. Ideal for short-haul material transport with zero emissions.
| 整车参数 Basic Parameters
|
总长（mm）
Total length( mm ) |
6550,6670,6870 | 动力系统参数 Power system | 电机型号
Motor model |
TZ380XSTQG001 |
| 总宽（mm）
Overall width( mm ) |
2350,2400 | 电机生产厂
Motor manufacturer |
湖北普旺汽车科技有限公司
Hubei Puwang Automobile Technology Co., Ltd. |
||
| 总高（mm）
Overall height( mm ) |
2670 | 位置/燃料形式
Location/Fuel Form |
中置/纯电动
Mounted/Purely Electric |
||
| 轴距（mm）
Wheelbase( mm ) |
3600、3800 | 电机形式
Motor form |
永磁同步电机
Permanent magnet synchronous motor |
||
| 前悬/后悬（mm）
Front/rear suspension ( mm ) |
1380/1570,1690 | 电机额定/峰值功率（kW）
Motor rated/peak power ( kw ) |
100/180 | ||
| 接近角/离去角（º）
Approach angle/departure angle (°) |
17/16 | 额定/峰值转矩（N.m）
Rated/peak torque(Nm) |
550/1200 | ||
| 整备质量（kg）
Curb weight ( kg ) |
6700,7080,7280 | 电池总容量kWh
Total battery capacity ( kwh ) |
亿纬163.43kWh,电压537.6 V
EVE 163.43 kWh, Voltage 537.6 V |
||
| 最大总质量（kg）
Maximum total mass ( kg ) |
11995 | 续驶里程（40km/h匀速法）
Driving range (40 km /h constant speed method) |
225km | ||
| 额定乘员数 （人）
Rated number of passengers (person) |
2，3 | ||||
| 最高车速（km/h）
Maximum speed ( km /h) |
85 | ||||
| 轮距（前/后）（mm）
Track (front/rear)(mm) |
1920/1860 | ||||
