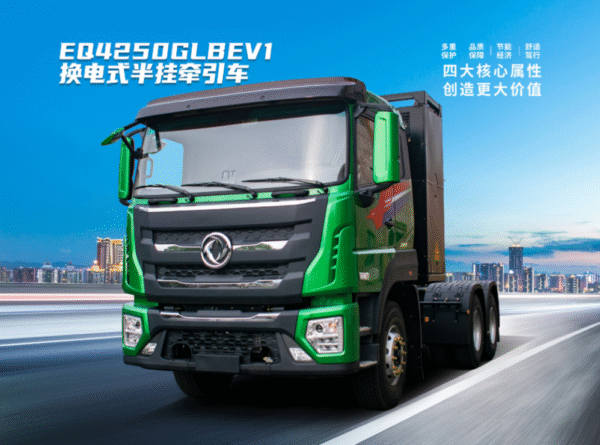

LHD Dongfeng EQ4250GLBEV1(EV)
1. High-Torque Electric Performance
The 360kW motor delivers class-leading 3,000Nm torque for exceptional hauling power while maintaining zero emissions and low noise operation.
2. Fast Battery Swapping Technology
281.92kWh CATL battery with swappable design minimizes downtime, keeping operations continuous and efficient.
3. Heavy-Duty Chassis Construction
DL710 frame with Hande 6.5T/13T axles and reinforced suspension reliably handles max 25,000kg GCW in demanding conditions.
4. Advanced Safety & Stability
Equipped with ESC, ADAS, and air-suspension rear axle for superior control and accident prevention when fully loaded.
5. Driver-Focused Cabin Design
Features air-suspension seats, climate control, and MP3/USB system to enhance comfort during long-haul journeys.
The Dongfeng EQ4250GLBEV1 is a cutting-edge electric tractor featuring a 360kW motor delivering massive 3,000Nm torque, paired with a 281.92kWh CATL battery for efficient heavy-haul operations. Its robust DL710 chassis with Hande 6.5T/13T axles and 9/10 multi-leaf suspension supports 25,000kg GCW. Advanced features include AMT transmission, ESC/ADAS safety systems, and air-suspension rear for smooth rides. The Huashen T709G cab offers driver comfort with climate control and MP3/USB system. Ideal for logistics with fast battery swapping and 220km range (40km/h).
| 整车参数 Basic Parameters
|
总长（mm）
Total length( mm ) |
7490 | 动力系统参数 Power system | 电机型号
Motor model |
TZ420XSTKQ001 |
| 总宽（mm）
Overall width( mm ) |
2550 | 电机生产厂
Motor manufacturer |
东风特汽（十堰）客车有限公司
Dongfeng Special Vehicle Co.,Ltd |
||
| 总高（mm）
Overall height( mm ) |
3150,3410,3350 | 位置/燃料形式
Location/Fuel Form |
中置/换电式
Mounted/Swappable Battery Powered |
||
| 轴距（mm）
Wheelbase( mm ) |
3800+1350 | 电机形式
Motor form |
永磁同步电机
Permanent magnet synchronous motor |
||
| 前悬/后悬（mm）
Front/rear suspension ( mm ) |
1530/810 | 电机额定/峰值功率（kW）
Motor rated/peak power ( kw ) |
215/360 | ||
| 接近角/离去角（º）
Approach angle/departure angle (°) |
23/37,20/45 | 额定/峰值转矩（N.m）
Rated/peak torque(Nm) |
1715/3000 | ||
| 整备质量（kg）
Curb weight ( kg ) |
10700,11250 | 电池总容量kWh
Total battery capacity ( kwh ) |
281.92kWh，宁德时代新能源科技股份有限公司
281.92 kWh, Contemporary Amperex Technology Co., Limited (CATL) |
||
| 最大总质量（kg）
Maximum total mass ( kg ) |
25000 | 续驶里程（40km/h匀速法）
Driving range (40 km /h constant speed method) |
220km | ||
| 额定乘员数 （人）
Rated number of passengers (person) |
2 | ||||
| 最高车速（km/h）
Maximum speed ( km /h) |
85 | ||||
| 轮距（前/后）（mm）
Track (front/rear)(mm) |
2036/1860/1860 | ||||
