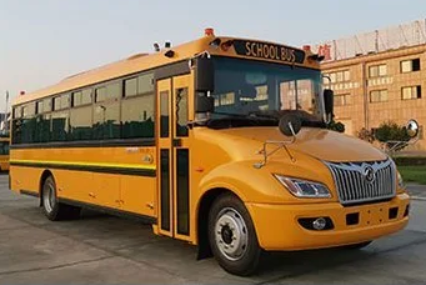

LHD Dongfeng EQ6100ST6D （Diesel)
-
Child-Specific Safety Design – Incorporates anti-pinch doors, safety belts, and emergency equipment specifically configured for young passengers.
-
Reliable Powertrain – WEICHAI turbocharged diesel delivers 125kW power with 600N·m torque for stable performance.
-
Comprehensive Safety Systems – Features 360° monitoring, ABS, and inspection alarms for complete protection.
-
Regulatory Compliance – Meets Euro-III emissions and all school bus safety standards.
-
Practical Interior – Includes AC, medical provisions, and non-slip flooring for passenger comfort and safety.
School Bus for Primary Students
This safety-focused school bus (11,195mm long, 56 seats) features a WEICHAI WP4.1NQ190E31 diesel engine (125kW/600N.m, Euro-III). Key safety elements include ABS brakes, 360° cameras, anti-pinch pneumatic doors, retractable seat belts, and emergency hammers. Equipped with AC, medical kits, and non-slip flooring, its yellow (Y08 standard) body with school bus lights ensures high visibility. Designed for child safety with full compliance.
This purpose-built school bus is designed with comprehensive safety features for child transportation. Measuring 11,195mm in length with 56 passenger capacity, it’s powered by a WEICHAI WP4.1NQ190E31 turbocharged diesel engine (125kW/600N·m) meeting Euro-III standards.
The semi-load-bearing body structure incorporates multiple safety systems including:
-
ABS braking with exhaust brake
-
360° panoramic monitoring
-
Anti-pinch pneumatic folding doors
-
Full retractable seat belts
-
Emergency safety hammers (4 units)
Additional child-focused features include:
-
Air conditioning system
-
Medical kit with dedicated bracket
-
Non-slip aluminum flooring
-
School bus identification lights
-
Safety inspection alarm system
Finished in standard yellow (Y08) for high visibility, the bus meets all school transportation safety requirements with its thoughtful design and reliable performance.
| 整车参数
Vehicle parameters |
总长(mm)
Total length (mm) |
11195 | 发动机参数
Engine parameters |
发动机型号
Engine model |
WP4.1NQ190E31 |
| 总宽(mm)
Overall width (mm) |
2500 | 发动机生产厂
Engine manufacturer |
潍柴
WEICHAI |
||
| 总高(mm)
Total height (mm) |
3240（空调） | 位置/燃料
Location/Fuel Type |
前置/柴油
Front/diesel |
||
| 车厢内高(mm)
Vehicle interior height (mm) |
1900 | 发动机型式
Engine type |
四缸、直列、水冷、增压中冷发动机
Four cylinder, inline, water-cooled, turbocharged intercooled engine |
||
| 轴距(mm)
Wheelbase (mm) |
6550 | 功率（kw/r/min）
Power (kw/r/min) |
125kW/2600r/min | ||
| 前悬/后悬(mm)
Front/rear suspension (mm) |
1175/3470 | 最大扭矩（N.m/r/min）
Maximum torque (N.m/r/min) |
600 N.m/
1300-1900r/min |
||
| 接近角/离去角(°)
Approach angle/departure angle (°) |
22/11 | 排量（ml）
Displacement (ml) |
4088 | ||
| 一级踏步高(mm)
First step height (mm) |
320 | 缸径*行程（mm）
Cylinder diameter * stroke (mm) |
4-105×118 | ||
| 厂定最大总质量(kg)
Factory maximum total mass (kg) |
12000 | 排放标准
Emission standard |
Euro-III |
||
| 额定乘员数(人)
Rated number of passengers (person) |
56 | ||||
| 最高车速(km/h)
Maximum speed (km/h) |
80 | ||||
| 轮距(mm)
Track width (mm) |
2050/1800 | ||||
