LHD Dongfeng EQ6661ST6D (Diesel)
-
Child-Specific Safety Design:
Equipped with child-friendly seats, full retractable seatbelts, and anti-pinch doors to ensure safe transport for young children. -
Reliable Performance:
Powered by a 103 kW Yuchai diesel engine, delivering strong and stable performance for daily school operations. -
Comprehensive Safety Features:
Includes ABS, tire pressure monitoring, and a blowout emergency system to enhance road safety. -
Comfortable Cabin Environment:

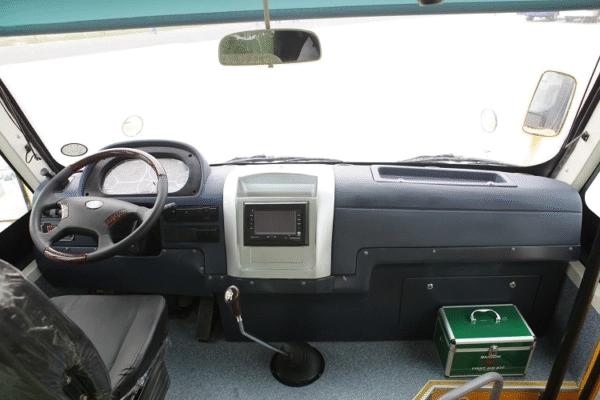

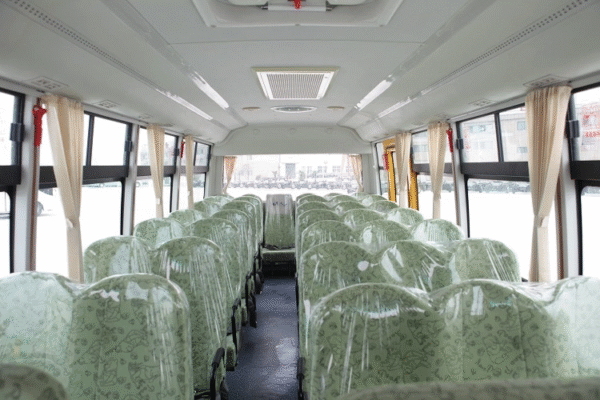

Air-conditioned interior with a shock-absorbing driver’s seat offers comfort for both driver and passengers. -
Customizable Options:
Optional features such as a speed limiter and medical kit allow for flexible adaptation to local school transport regulations.

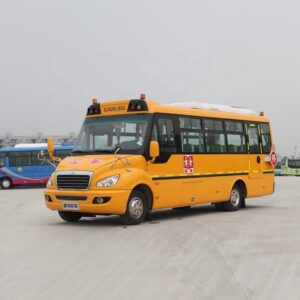

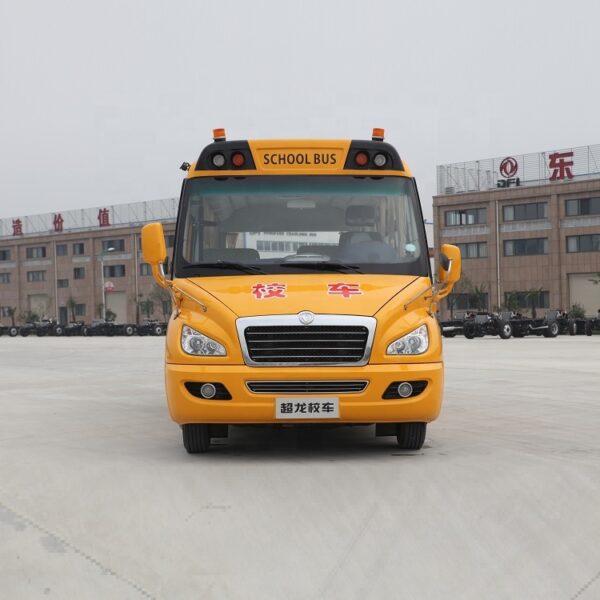

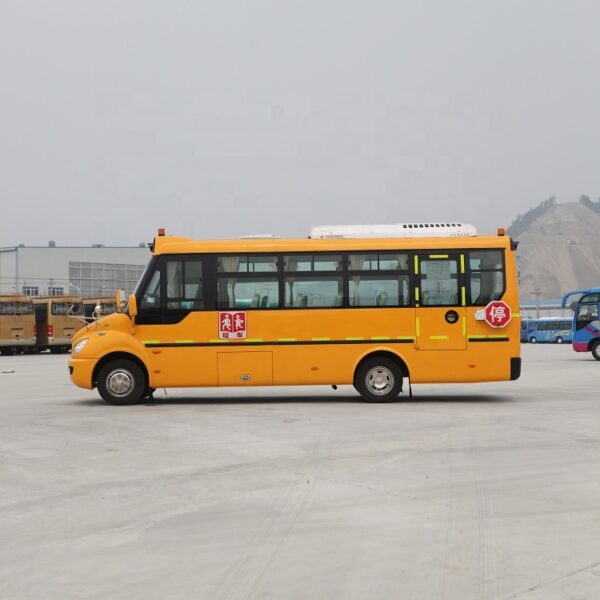

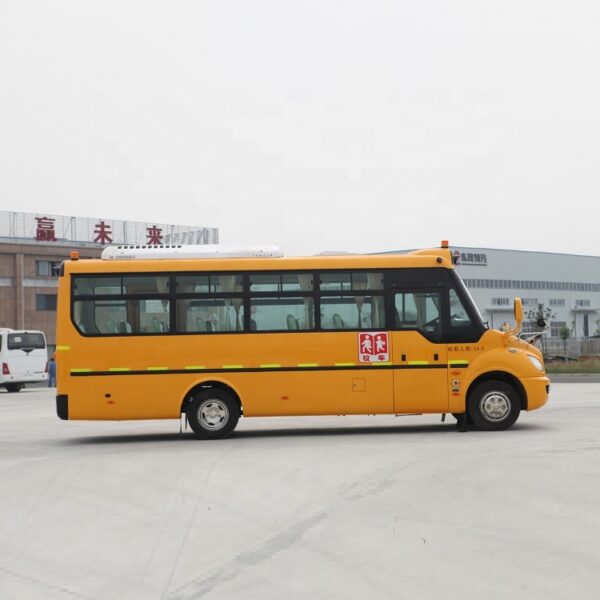

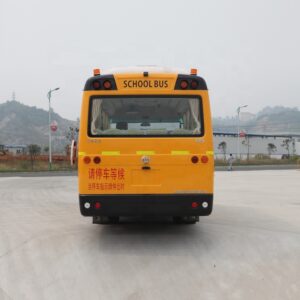

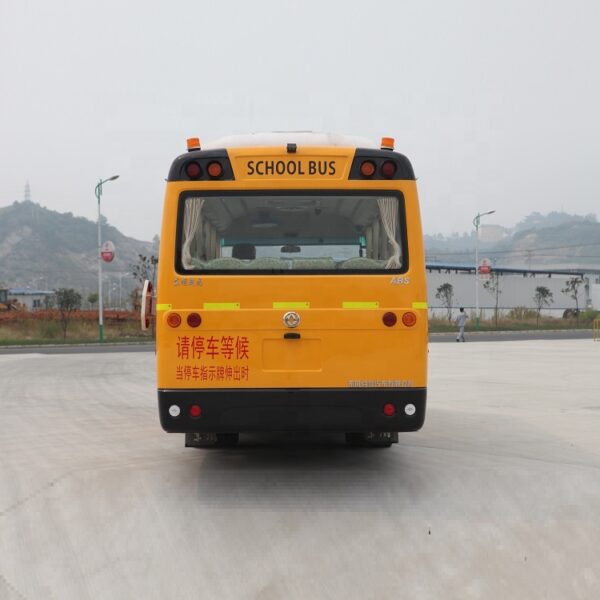

The Dongfeng EQ6661ST6D is a school bus specially designed for young children. It measures 6,590 mm in length, 2,400 mm in width, and 3,020 mm in height, with a wheelbase of 3,650 mm and a rated capacity of 34 passengers. Powered by a Yuchai YCY24140-60 diesel engine, it delivers a maximum power of 103 kW and complies with China Stage III emission standards. The vehicle is equipped with a pneumatic folding door, anti-pinch device, tire pressure monitoring, ABS braking system, and a tire blowout emergency system to ensure maximum safety. The interior features air conditioning, child-specific seats, a shock-absorbing driver’s seat, and retractable seatbelts throughout. Optional features include a speed limiter and a medical kit. The FOB price is USD 28,500 per unit, making it ideal for kindergarten and preschool transport needs.
| 整车参数Vehicle Parameters | 总长(mm)
Total Length(mm) |
6590 | 发动机 参数Engine Parameters | 发动机型号
Engine Model |
YCY24140-60 |
| 总宽(mm)
Total Width(mm) |
2400 | ||||
| 总高(mm)
Total Height(mm) |
3020 | 发动机生产厂
Engine Manufacturer
|
玉柴 Yuchai | ||
| 车厢内高(mm)
Interior Height(mm) |
1880 | 位置/燃油
Position/Fuel Type |
前置/柴油
Front/Diesel |
||
| 轴距(mm)
Wheelbase(mm) |
3650 | 发动机型式
Engine Type |
四缸、直列、水冷、增压中冷发动机
Four Cylinders,Inline,Water-cooled,Trubocharged Intercooled Engine |
||
| 前悬/后悬(mm)
Front/Rear Overhang(mm) |
970/1970 | 最大功率(kw/r/min)
Max Power（kw/r/min） |
103KW/2950r/min | ||
| 接近角/离去角(°)
Approach/Departure Angle(°) |
17/11 | 最大扭矩(N.m/r/min)
Max Torque(N.m/r/min) |
400N.m/1400-2400r/min | ||
| 一级踏步高(mm)
First Step Height(mm) |
340 | 排量(ml)
Displacement(ml) |
2360 | ||
| 厂定最大总质量(kg)
Factory Maximum Mass(kg) |
6500 | 排放标准
Emission Level |
Euro 3 | ||
| 额定乘员数(人)
Rated Number of Passengers(Person) |
34 | ||||
| 最高车速(km/h)
Maximum Speed(km/h) |
80 | ||||
| 前/后轮距(mm)
Track Width(mm) |
1810/1670 | ||||
