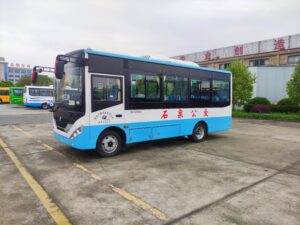

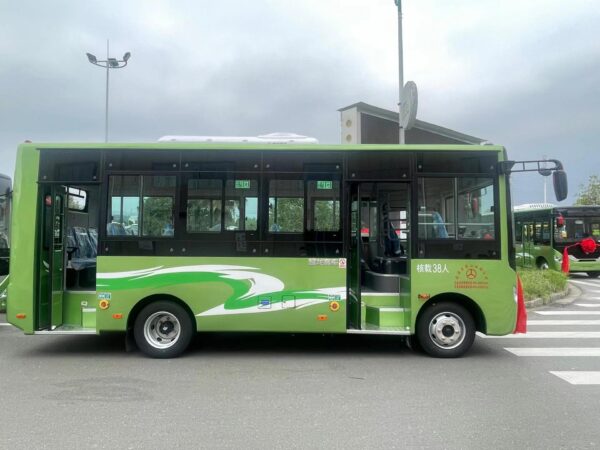

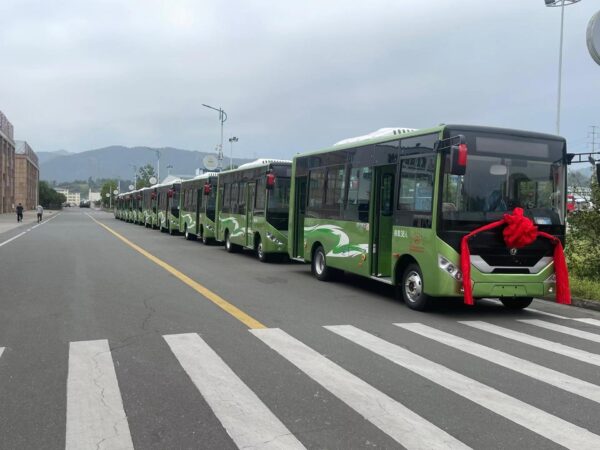

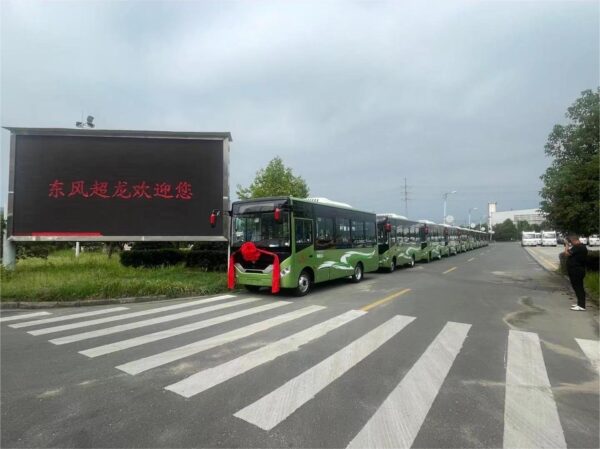

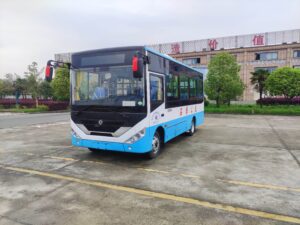

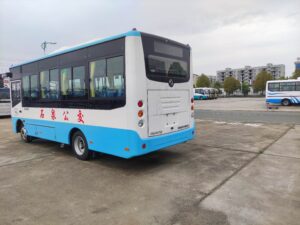

LHD Dongfeng EQ6670CT6D (Diesel)

Optimized for City Transit:
Designed specifically for urban use, with a 23-passenger capacity and compact dimensions ideal for maneuvering through city streets.
Fuel-Efficient Diesel Engine:
Equipped with a 103 kW Yuchai engine that meets Euro IV standards, offering reliable performance with reduced emissions.
Durable and Stable Structure:
Built on a non-load-bearing body with Dana axles and leaf spring suspension for enhanced durability and road stability.
Essential Safety Features:
Comes standard with air brakes, ABS, and Beidou GPS, ensuring safe and accurate city transport operation.
Customizable Comfort Options:
Optional roof-mounted air conditioner and tire pressure monitoring system provide additional comfort and safety for passengers and drivers.

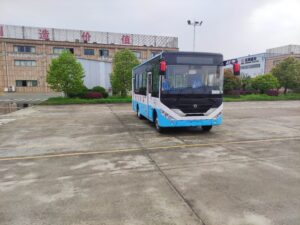

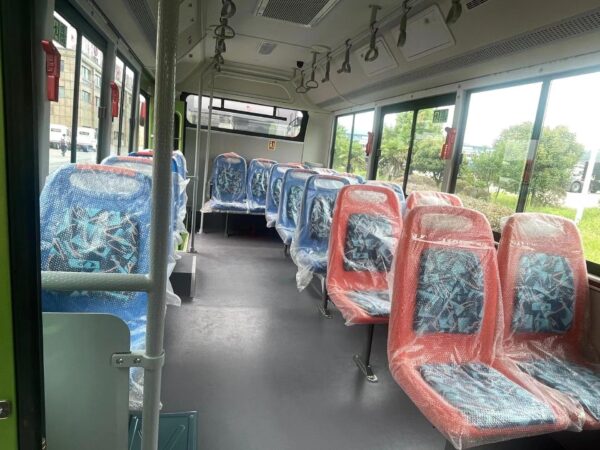

The Dongfeng EQ6670CT6D is a medium-sized city bus designed for urban public transportation. It measures 6,730 mm in length, 2,270 mm in width, and 3,110 mm in height, with a wheelbase of 3,650 mm and a rated capacity of 23 passengers. Powered by a Yuchai YC4FA130-40 diesel engine, it delivers a maximum output of 103 kW and meets Euro IV emission standards. The vehicle features a non-load-bearing body structure, equipped with a Fast 5-speed manual gearbox, Dana axles, leaf spring suspension, and power steering. Standard features include air brakes, ABS, and a Beidou satellite positioning system, with optional equipment such as a roof-mounted air conditioner and tire pressure monitoring system. It has a top speed of 69 km/h and a 90-liter fuel tank, making it well-suited for city bus operations.

整车参数 Vehicle parameters	总长（mm） Length	6730	发动机参数 Engine parameters	发动机型号 Engine Model	YC4FA130-40
	总宽（mm） Width	2270		发动机生产厂 Engine Manufacturer	玉柴Yuchai
	总高（mm） Height	3110		位置/燃油 Position/fuel type	前置柴油Front/Diesel
	车厢内高 Height inside the carriage	1980		发动机型式 Engine type	直列四缸Inline-four cylinder
	轴距（mm） Wheel base	3650		最大功率（kw）Maximum power	103kw/2950r/min
	前悬/后悬（mm） Front/rear suspension	1000/2080		最大扭（Nm/rpm） Maximum torque	400N.m/1400-2000r/min
	接近角/离去角（°） Approach angle/departure angle	22/10		排量（ml）Displacement	2360
	一级踏步高(mm) First level step height	380		排放标准 Emission level	EURO IV
	厂定最大总质量（kg）Maximum total mass	7500
	额定乘员数(人) Rated number of passengers	23
	最高车速（km/h） Maximum speed	69
	前/后轮距（mm） Front/rear track width	1810/1670
项目 Item		标准配置 Standard configuration			选装配置 Optional configuration
