LHD Dongfeng EQ6810CTBEV4 (EV)

Zero Emissions & Eco-Friendly – Fully electric powertrain reduces carbon footprint, making it ideal for sustainable urban transport and green city initiatives.
Long Range & Reliable – With a 151.7 kWh LFP battery, it delivers up to 330 km per charge, ensuring efficient daily operations without frequent recharging.
High Passenger Capacity – Spacious design accommodates up to 56 passengers, optimizing efficiency for busy public transit routes.
Advanced Safety & Tech – Features include Beidou GPS, multi-camera surveillance, and ABS, enhancing driver control and passenger security.
Low Operating Costs – Electric drivetrain reduces fuel and maintenance expenses, offering long-term savings for fleet operators.

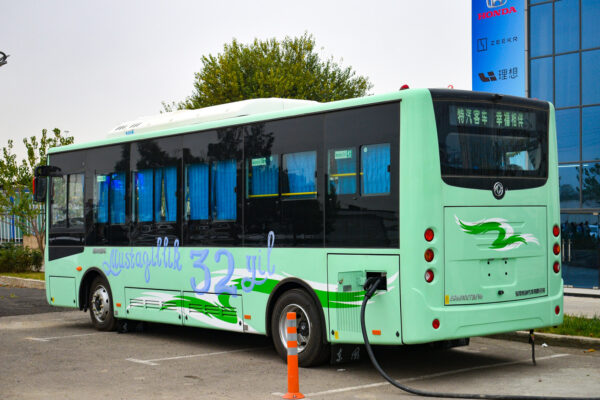

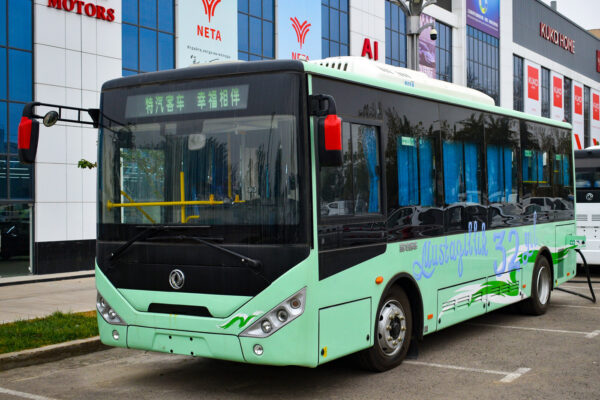

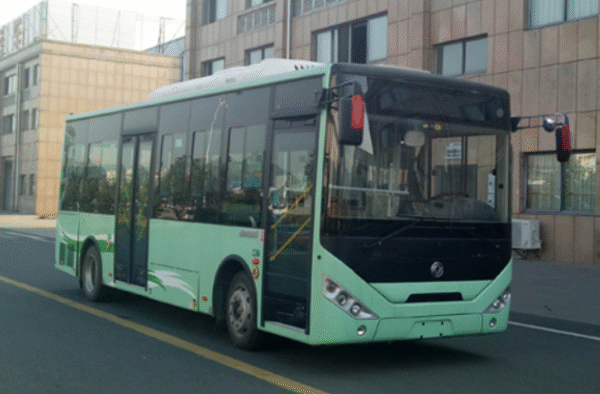

The Dongfeng EQ6810CTBEV4 is a pure electric city bus with a total length of 8,060 mm, a width of 2,260 mm, and a height of 2,860/2,990 mm, featuring a wheelbase of 4,400 mm. It is equipped with a permanent magnet motor, delivering a rated power of 70 kW and a peak power of 120 kW. The vehicle is powered by a CATL lithium iron phosphate (LPF) battery with a total capacity of 151.7 kWh, offering a driving range of 330 km (at a constant speed of 40 km/h). The bus adopts a fully load-bearing body structure and includes air-conditioned interiors, an electric fan, a Beidou satellite positioning system, and a multi-channel video recording system. With a rated passenger capacity of 56 and a top speed of 69 km/h, it is designed for urban public transportation, combining environmental sustainability with high efficiency.

整车参数 DIMENSIONS	总长（mm） Overall Length	8060	新能源系统 Electric system	电机型号Electric Motor Model	TZ260XSXL540700A
	总宽（mm） Overall Width	2260		电机生产厂Motor Manufacturer	湖北绿驰精密电驱动系统有限公司Chinese Electric Motor
	总高（mm） Overall Height	2860/2990		位置/燃料形式Position/Fuel type	后置/磷酸铁锂 Rear/LPF
	车厢内高（mm） Interior Height	2050/1870		电机形式Motor Type	永磁电机Permanent magnet motor
	轴距（mm） Wheelbase	4400		电机额定/峰值功率（kw） Motor rated/peak power	70/120
	前悬/后悬（mm） Front/Rear Overhang	1790/1870		额定/峰值转矩（N.m） Rated/peak torque	167/550
	接近角/离去角（º）Approach / departure angle	8/10		电池总容量kwh/电压V Energy storage system	宁德时代151.7/502.32 CATL 151.7/502.32
	厂定最大总质量（kg）G.V.W	12500		续驶里程（40km/h匀速法） Max Driving Mileage	330km
	额定乘员数（人） Passenger Seats	560/15-30	整车公告及批次
	最高车速（km/h）Max Speed	69	推荐/免征目录
	轮距(前/后)(mm) Distance between wheel tires(front/rear)	1835/1700
