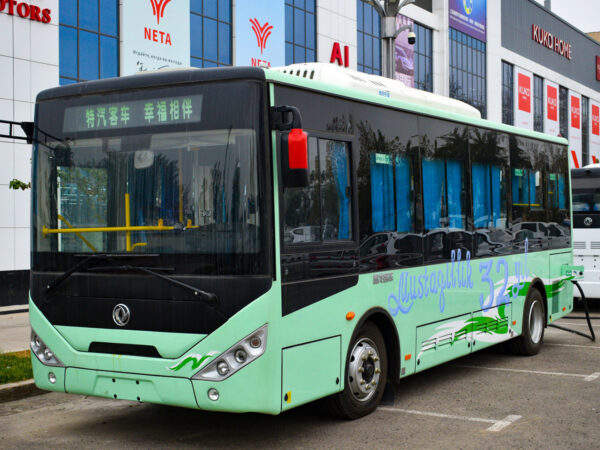

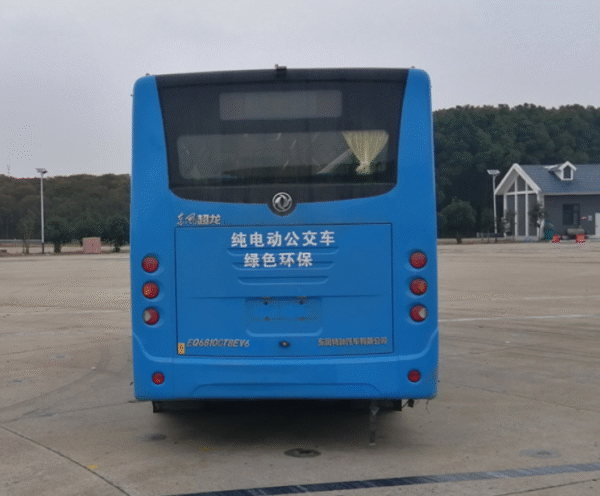

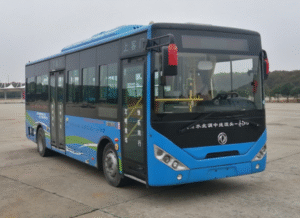

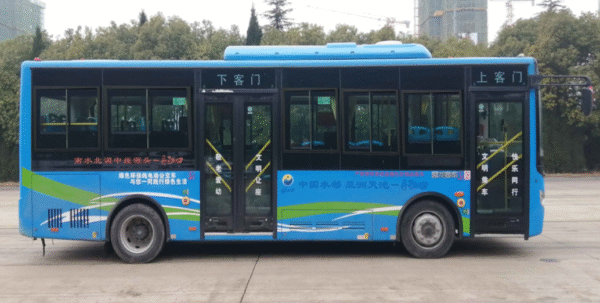

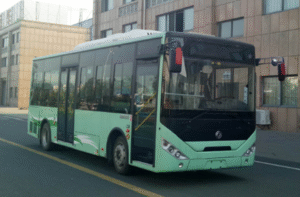

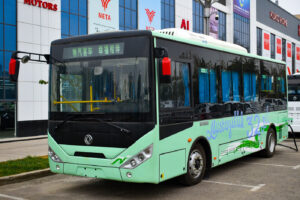

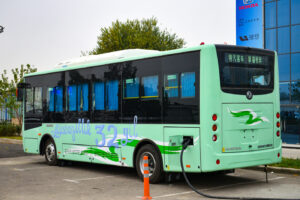

LHD Dongfeng EQ6810CTBEV6 (EV)
-
Zero-Emission Performance – Powered by a 151.7kWh CATL LFP battery and 90/180kW motor, it delivers 330km range with no tailpipe emissions, ideal for eco-friendly cities.
-

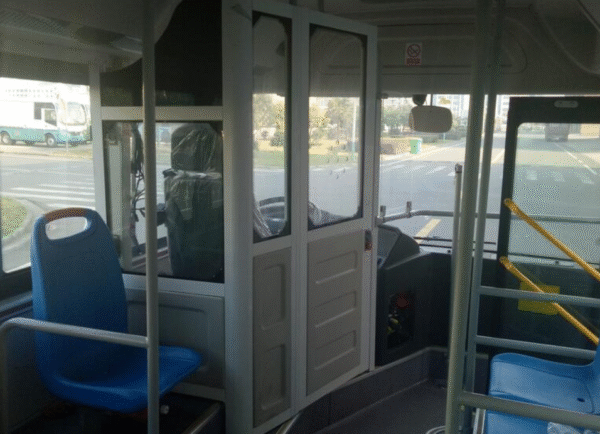

High Passenger Capacity & Comfort – Spacious cabin accommodates 54 passengers with air-conditioning, bamboo flooring, and ergonomic seating for a smooth urban commute.
-
Advanced Safety Features – Equipped with ABS, front disc/rear drum brakes, and Beidou GPS tracking for enhanced driver control and passenger security.
-
Low Maintenance & Operating Costs – Electric drivetrain reduces fuel expenses, while durable components like leaf springs minimize long-term upkeep.
-
Customizable Options – Offers flexible configurations, including video surveillance, electric sunroof, and emergency switches, tailored to transit operators’ needs.
The Dongfeng EQ6810CTBEV6 is a pure electric city bus with an 8,060 mm length, 2,260 mm width, and 2,860/2,990 mm height, offering a spacious interior (2,050/1,870 mm). It features a 90/180 kW permanent magnet motor, powered by a 151.7 kWh CATL LFP battery, delivering a 330 km range (at 40 km/h). With a 54-passenger capacity, ABS braking, air suspension, and Beidou GPS tracking, it ensures eco-friendly, efficient urban transport. Optional configurations include electric AC, video surveillance, and emergency safety features. FOB pricing starts at $69,500/unit, with volume discounts available. Production takes 30-60 days after deposit.
| 整车参数
DIMENSIONS |
总长（mm）
Overall Length |
8060 | 新能源系统
Electric system |
电机型号Electric Motor Model | TZ400XS090800 |
| 总宽（mm）
Overall Width |
2260 | 电机生产厂Motor Manufacturer | 福建万润新能源科技有限公司Chinese Electric Motor | ||
| 总高（mm）
Overall Height |
2860/2990 | 位置/燃料形式Position/Fuel type | 后置/磷酸铁锂 Rear/LPF | ||
| 车厢内高（mm）
Interior Height |
2050/1870 | 电机形式Motor Type | 永磁电机Permanent magnet motor | ||
| 轴距（mm）
Wheelbase |
4400 | 电机额定/峰值功率（kw）
Motor rated/peak power |
90/180 | ||
| 前悬/后悬（mm）
Front/Rear Overhang |
1790/1870 | 额定/峰值转矩（N.m）
Rated/peak torque |
420/800 | ||
| 接近角/离去角（º）Approach / departure angle | 8/10 | 电池总容量（kwh）
Energy storage system |
宁德时代151.7
CATL 151.7 |
||
| 厂定最大总质量（kg）G.V.W | 12500 | 续驶里程（40km/h匀速法）
Max Driving Mileage |
330km | ||
| 额定乘员数（人）
Passenger Seats |
54/15-29 | 整车公告及批次 | |||
| 最高车速（km/h）Max Speed | 69 | 推荐/免征目录 | |||
| 轮距(前/后)(mm)
Distance between wheel tires(front/rear) |
1835/1700 | ||||
