LHD Dongfeng EQ6930 （Diesel)
-
High-Performance Euro V Engine – Powered by a 162kW Yuchai 6.49L diesel engine (800Nm torque) meeting strict Euro V standards for efficient urban operation with reduced emissions.
-
Exceptional Passenger Capacity – Spacious 2460mm interior height accommodates 75 passengers (28+1 seated) including wheelchair space for inclusive urban mobility.
-
Advanced Safety Systems – Features ABS brakes, eddy current retarder, 7-camera monitoring, and 7 emergency hammers for comprehensive passenger and driver protection.
-
Extreme Climate Adaptability – Cold-proof components (-40°C rated) with heated urea/oil systems and engine preheating ensure reliable operation in harsh winter conditions.
-
Smart Fleet Connectivity – Equipped with GLONASS tracking, CAN bus, and 7-inch monitoring display (7 cameras) for real-time vehicle management and security oversight.

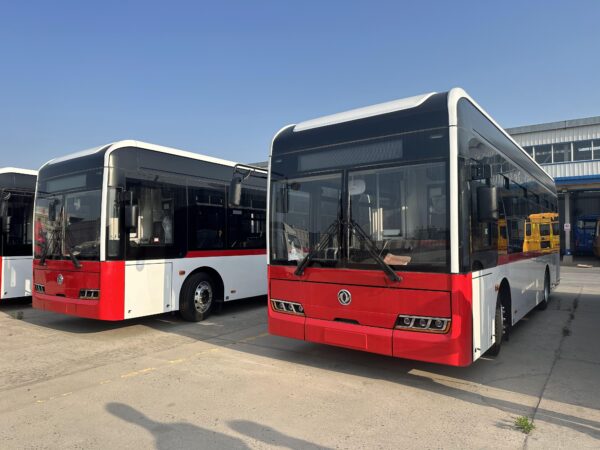

The Dongfeng EQ6930 is a 9.34-meter low-entry city bus with Euro V-compliant Yuchai 6.49L diesel engine (162kW/800Nm), designed for high-capacity urban transit. Its full-load-bearing body features air suspension, ABS brakes, and eddy current retarder for safety, while the 2460mm interior height and 28+1 seating (with wheelchair space) ensure passenger comfort. Key tech includes 7-camera monitoring, CAN bus仪表, and -40°C cold-weather adaptations.
| 整
车参数
|
总长（mm） Total length (mm) |
9340 | 发
动 机 参数 |
发动机型号 Engine type |
YC6J220-50 |
| 总宽（mm） Total width (mm) |
2550 | ||||
| 总高（mm） Total height (mm) |
3240 | 发动机生产厂 Engine factory |
玉柴 Yuchai |
||
| 车厢内高（mm） Compartment height (mm) |
2460 | 位置/燃油 Location/fuel |
后置/柴油 Rear/diesel |
||
| 轴距（mm） Wheelbase (mm) |
4500 | 发动机型式 Engine type |
直列6缸、水冷、四冲程、增压中冷 Inline 6 cylinder, water cooled, four stroke, supercharged intercooled |
||
| 前悬/后悬（mm） Front/rear suspension (mm) |
2010/2830 | 最大功率（kw/r/min） Maximum power (kw/r/min) |
162/2500 | ||
| 接近角/离去角（º） Angle of approach/angle of departure (O) |
8/7 | 最大扭矩（N.m/r/min） Maximum torque (N.m/r/min) |
800/1200～1700 |
||
| 一级踏步高（mm） First step height (mm) |
360 | 排量(L) Displacement (L) |
6.49 | ||
| 厂定最大总质量（kg） Factory-designated maximum total mass |
13,500 | 排放标准 Emission standards |
欧V Euro V |
||
| 额定乘员数 （人） Rated passenger capacity (persons) |
75/17-32 | ||||
| 最高车速（km/h） Maximum speed (km/h) |
80 | ||||
| 前/后轮距 Front/rear wheelbase |
2185，2160/1914，1898，1918，1934 | ||||
