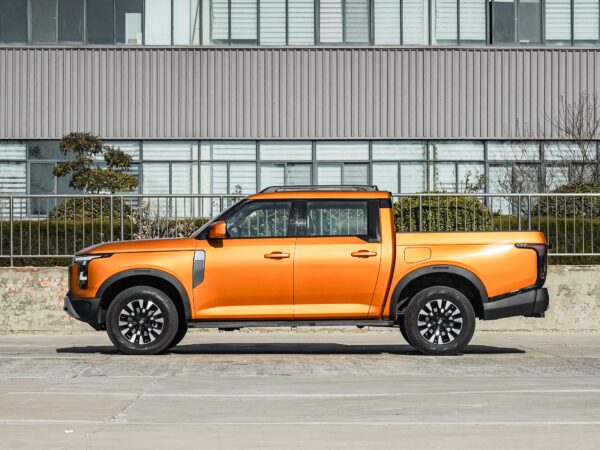

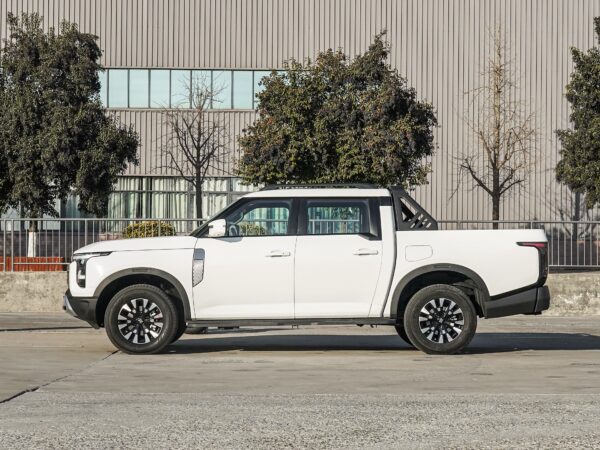

LHD Dongfeng Z9(Gasoline/Diesel/Hybrid)
-
Powerful engine with multiple options
-
Advanced intelligent driving assistance
-
Spacious and comfortable interior
-
Luxury cabin with rich features
-
Excellent off-road capability and clearance
The Dongfeng Z9 is a mid-to-large pickup jointly launched by Zhengzhou Nissan and Dongfeng Motors, positioned as a “hardcore new player” to meet modern consumers’ dual demands for off-road performance and luxury features.

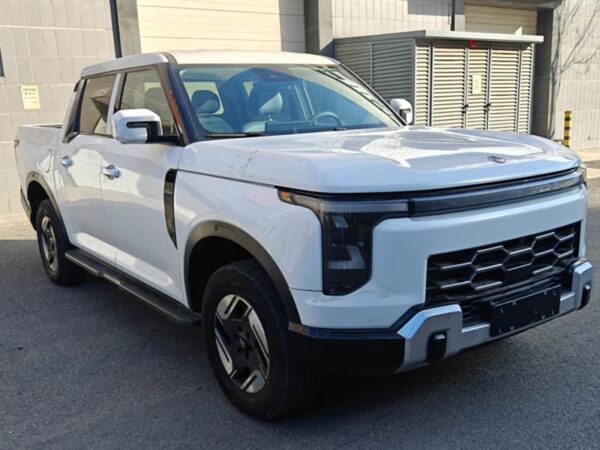

The exterior adopts the “Z-Vision” design language, featuring Z-shaped LED daytime running lights and an “armor shield” grille, showcasing a strong and high-tech appearance. Measuring 5520×1960×1950 mm with a 3300 mm wheelbase, it offers spacious seating and excellent off-road capability.
Power options include a 2.3L turbo diesel engine (190 hp, 500 Nm torque) and a 2.0L turbo gasoline engine (258 hp, 400 Nm torque), both paired with an 8-speed automatic transmission to suit different users.
Inside, the Z9 features dual screens, 28 intelligent driving assistance functions, and supports L2+ level autonomous driving. It includes wireless charging, 360-degree panoramic cameras, lane departure warning, adaptive cruise control, and more, enhancing safety and convenience.
As Dongfeng’s flagship pickup, the Z9 combines powerful off-road ability with luxury, comfort, and smart technology, making it a versatile vehicle for various scenarios.
| P20 PHEV Spec | Gasline + Battery | |||||||
| Size | Dimentions L*W*H(mm) | 5498*1950*1904 | ||||||
| Wheelbase(mm) | 3300 | |||||||
| Deck size(mm) | 1520*1590*550 | |||||||
| E/T | Engine | 1.5T | 1.5T | 1.5T | 1.5T | 1.5T | ||
| DFMC15TE3 | DFMC15TE4 | DFMC15TE5 | DFMC15TE6 | DFMC15TE7 | ||||
| Engine Power（KW） | 110 | 110 | 110 | 110 | 110 | |||
| Battery capacity(kwh) | 17 | 17 | 32.86 | 32.86 | 32.86 | |||
| Drive motor power (rated/Max) | 156 | 156 | 156 | 156 | 156 | |||
| Torque（N·m） | 800 | 800 | 800 | 800 | 800 | |||
| Oil consumption(L/100km) | 8.1 | 8.1 | 8.1 | 9 | 9 | |||
| Fuel tank Capacity (L) | 73 | 73 | 73 | 73 | 73 | |||
| Approach Angle | 31° | 31° | 31° | 31° | 31° | |||
| Departure Angle | 26° | 26° | 26° | 26° | 26° | |||
| Seat Capacity | 5 | 5 | 5 | 5 | 5 | |||
| 级别/grade | STD | STD | STD | STD | MIDUPR | |||
| 符号说明：”S”标准配置；”-“无此装备；”o”选装 /Symbol description: “S” standard configuration; – This equipment is not available; Optional “o” |
车型代号/model code | X09A | X10A | X13A | X12A | X21B | ||
| 序号 Number |
分类 Class |
规格要点Spec.key point | 详细规格Remarks | 60KM 2WD |
60KM 4WD |
130KM 2WD |
130KM 4WD |
130KM 4WD |
| 1 | 动力系统 Engine |
发动机型号/Engine Type | DFMC15TE3 | S | S | S | S | S |
| N6b+RDE+FE4 | S | S | S | S | S | |||
| 驱动电机型号Drive motor type | TZ220XY001 | S | S | S | S | S | ||
| 驱动电机功率（额定/最大） Drive motor power (rated/Max) |
74/156kW | S | S | S | S | S | ||
| 发电机型号Generator model | TZ220XY002 | S | S | S | S | S | ||
| 发电机功率（额定/最大） Generator power (rated/Max) |
-60/-92kW | S | S | S | S | S | ||
| 2 | 燃油系统 Fuel System |
燃油种类Fuel Types | 汽油(#92,Gasoline) | S | S | S | S | S |
| 3 | 传动系统 Transmission |
变速箱 Transmission |
驾驶模式 Driving pattern(HEV、EV) | S | S | S | S | S |
| 4DHT（标准、经济、运动、雪地模式) (Standard/Economy/Sports/Snow Mode) |
S | S | S | S | S | |||
| 球头式换挡杆/Ball-head shift lever | S | S | S | S | S | |||
| 4 | 动力电池 Power battery |
17kwh | 满足NEDC 55KM | S | S | – | – | – |
| 32.86kWh | 满足NEDC 120KM | – | – | S | S | S | ||
| 5 | 驱动及悬挂 Drive & Suspension |
驱动型式/Drive mode | 2WD | S | – | S | – | – |
| 4WD(电控) | – | S | – | S | S | |||
| 四驱系统/4WD system | 分时四驱/Part-time 4WD | – | S | – | S | S | ||
| 智能四驱 TOD(可实现分时切换)/Intelligent 4WD TOD(time-sharing switching) | – | – | – | – | – | |||
| 前悬挂型式/Front suspension | 双叉臂+稳定杆/Double wishbone+stabilizer | S | S | S | S | S | ||
| 后悬挂型式/Rear suspension | 钢板弹簧/Leaf spring | S | S | S | S | – | ||
| 五连杆/Suspension with 5 connecting rods | – | – | – | – | S | |||
