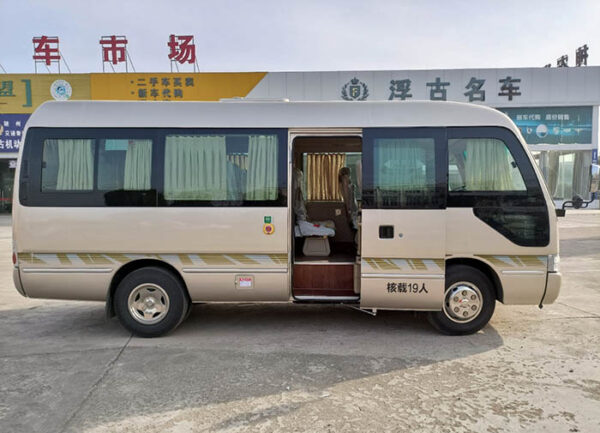

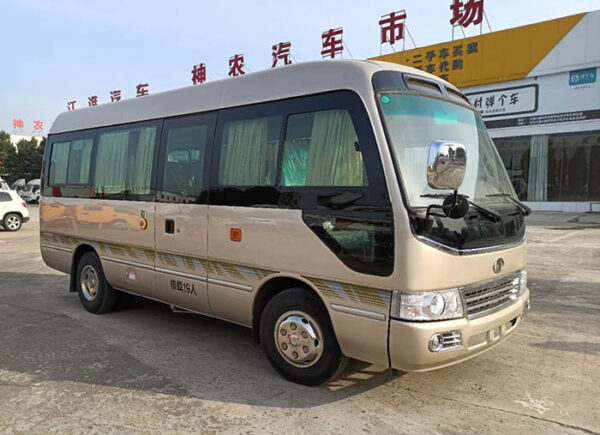

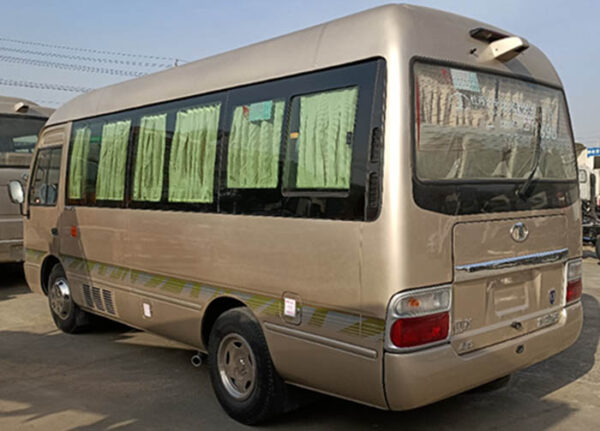

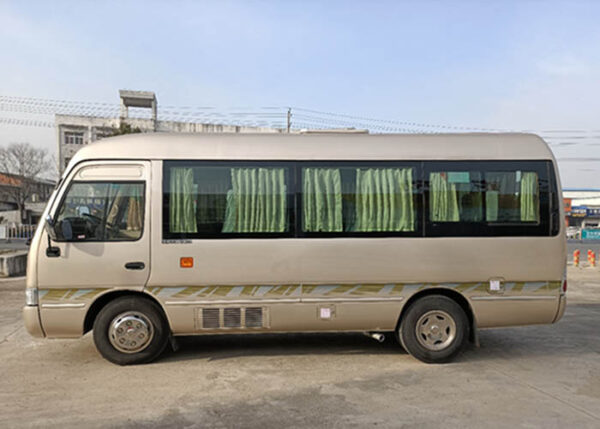

LHD Mudan MD6601 (Diesel)
-
Eco-Friendly Euro V Engine – Yuchai 103kW diesel meets strict emissions standards while delivering 400N·m torque for reliable urban transit.
-
Compact Urban Design – 6m length and 5.5T GVW ensure easy maneuverability in crowded city environments.
-
Passenger-Focused Interior – Features 18+1 seats, A/C, and MP3 radio for basic comfort during short trips.
-
Essential Safety Systems – Equipped with dual-circuit air brakes and energy storage parking brakes for secure operation.
-
Cost-Effective Operation – Simple mechanical design with 70L fuel tank and drum brakes minimizes maintenance costs.
The MD6601KC is a 6-meter Euro V diesel minibus (5,995×2,050×2,720mm) powered by a Yuchai YCY24140-50 engine (103kW/400N·m). Designed for 18+1 passengers, it features manual transmission, drum brakes, and less-leaf spring suspension. The interior includes standard seats, MP3 radio, and A/C. Safety systems include dual-circuit air brakes and energy storage parking brakes. With a 70L fuel tank and 7.00R16 tires, it ensures efficiency for urban transport. Priced competitively, it’s ideal for shuttle services.
| 整
车参数 |
总长（mm）
Overall length（mm） |
5995 | 发
动 机 参数 |
发动机型号
Engine model |
YCY24140-50 |
| 总宽（mm）
Overall width （mm） |
2050 | 发动机生产厂
Engine manufacturer |
YUCHAI | ||
| 总高（mm）
Overall height （mm） |
2720 | 发动机位置/燃油
Engine position/fuel |
前置/柴油
Front-mounted/diesel |
||
| 车厢内高（mm）
Inner height （mm） |
1850 | 发动机型式
Engine type |
直列、四缸、
In line, 4 cylinders, |
||
| 轴距（mm）
Wheel base （mm） |
3300 | 最大功率(kw)
Power rating (kw) |
103 | ||
| 前悬/后悬（mm）
Front/rear overhang（mm） |
1150/1545 | 最大扭矩(N.m)
Max. torque( N.m) |
400 | ||
| 接近角/离去角（º）
Approaching and departure angle （º） |
16/15 | 排量(ml)
Displacement (ml) |
2360 | ||
| 厂定最大总质量kg
Max. total mass (kg) |
5500 | 排放标准
Emission standard |
欧五
EURO V |
||
| 额定乘员数（人/座）
Capacity (people/seats) |
18+1 | 最高车速 km/h
Max. speed (km/h) |
100 |
