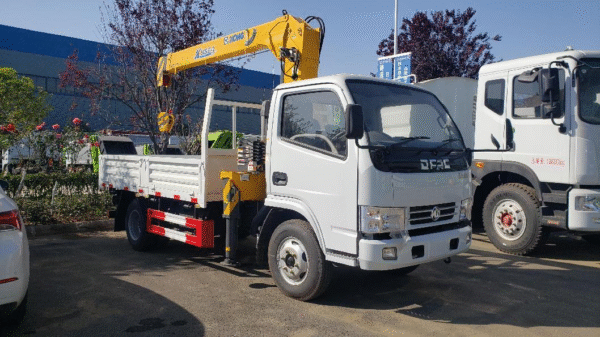

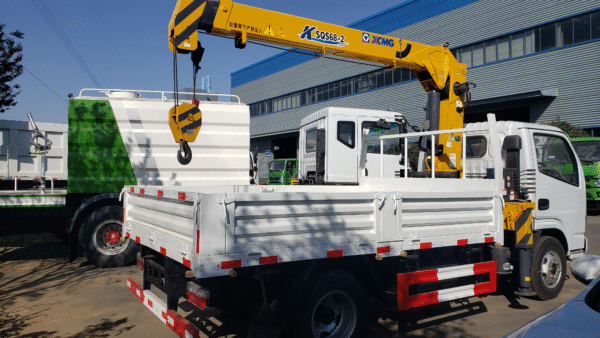

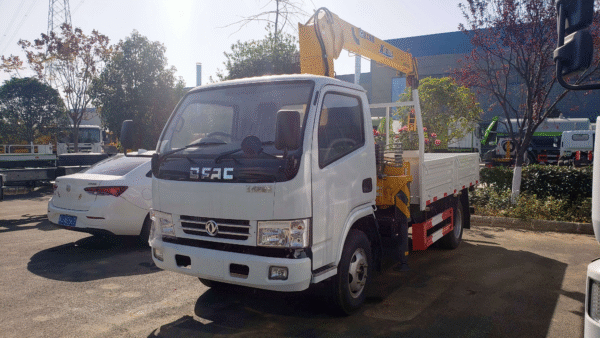

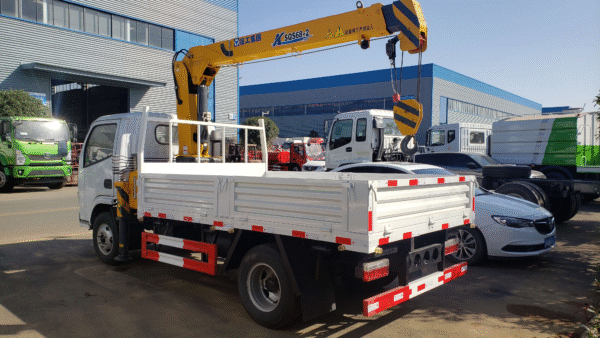

LHD/RHD DFAC Crane Truck (Diesel)
-
Powerful Diesel Engine – Equipped with a reliable 90hp YUNEI engine that ensures strong performance and fuel efficiency.
-
Integrated Crane System – 3-ton straight-arm crane with 5.5m working radius enhances loading and lifting capabilities on-site.
-
Durable Cargo Body – Q235 carbon steel box with reinforced 2mm sides and 3mm bottom ensures long-lasting durability.
-
Right-Hand Drive – Suitable for countries with RHD traffic regulations, ensuring compliance and ease of operation.
-
Compact and Efficient – 4×2 chassis with a 6.95m length offers excellent maneuverability in urban and construction environments.
This right-hand drive 3-ton crane truck features a 4×2 drive system and is equipped with a YUNEI 4100QB-2 diesel engine that meets Euro 3 emission standards. It comes with a 5-speed manual transmission and delivers a maximum power of 90 horsepower. The overall dimensions are 6950×2300×3200 mm, and the cargo box measures 3650×2050×450 mm, with a rated loading capacity of 3 tons. It is fitted with a CLW brand straight-arm crane (1+1 sections), offering a maximum lifting capacity of 3 tons, a maximum working radius of 5.5 meters, and a lifting height of up to 6.8 meters. The vehicle is equipped with H-type front outriggers, and the cargo compartment is made of Q235 carbon steel.
| 3TON CRANE TRUCK 4X2 (RHD) | |
| Parameters of chassis | |
| Cab | One and half row cabin |
| Driving Type | Manual Right hand drive |
| Drive Wheel | 4×2 |
| GVW | 6000(kg) |
| Curb weight | 3600(kg) |
| Loading capacity | 3000(kg） |
| Overall dimensions | 6950*2300*3200(mm) |
| Box dimensions | 3650*2050*450(mm) |
| Number of axles | 2 |
| Wheelbase | 3360(mm) |
| Tire specification | 7.00R16 |
| Number of tire | 6+1 |
| Brake system | Air brake |
