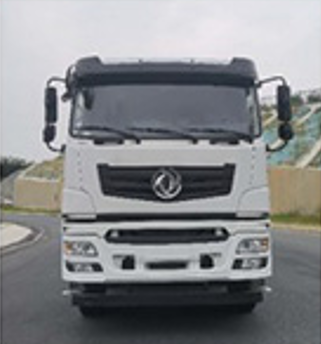

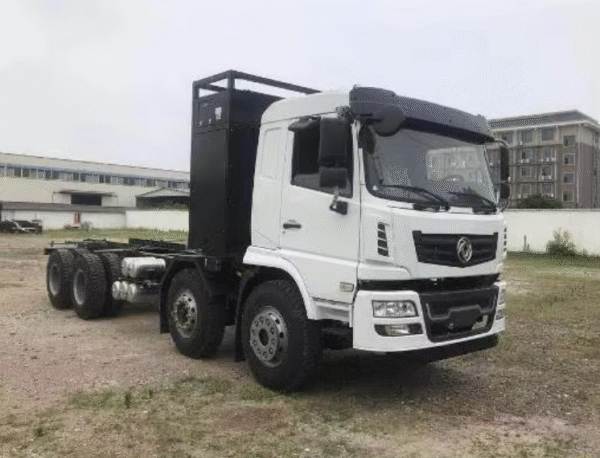

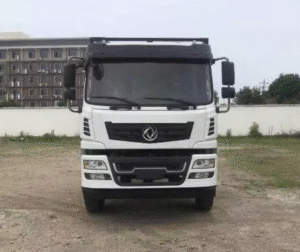

LHD/RHD Dongfeng EQ3310 (EV)
1. Industry-Leading Battery Capacity
With a massive 400.62kWh battery and dual-gun charging system, this truck delivers exceptional range and fast charging for uninterrupted heavy-duty operations.
2. Unmatched Electric Torque Performance
The 240kW motor generates 2,400Nm of instant torque, outperforming many diesel equivalents while maintaining zero emissions and lower operating costs.
3. Heavy-Duty 8×4 Chassis Design
Built with reinforced DL700 frame and Dana 5.5T/11.5T axles, it reliably handles maximum 31,000kg payloads in the toughest mining and construction environments.
4. Intelligent Safety & Stability Systems
Equipped with AEBS, ESC, and automatic wear detection for superior control and accident prevention when fully loaded.
5. Ergonomic Operator Environment
Features air-suspension seats, touchscreen controls, and climate-adjusted cab to reduce driver fatigue during extended work shifts.

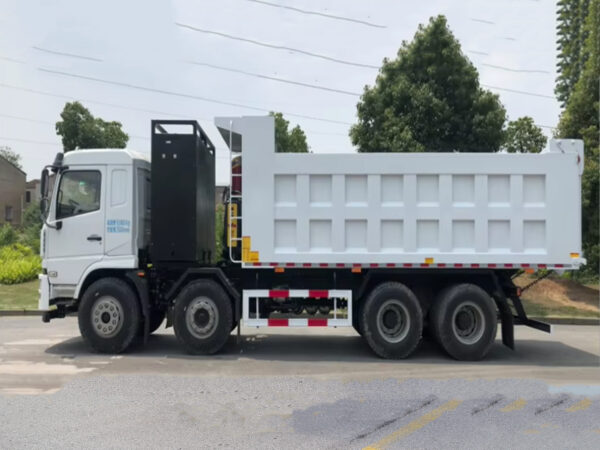

Designed for heavy-duty operations, the Dongfeng Zhizi EQ3310 is a right-hand-drive 8×4 electric dump truck featuring a powerful 240kW motor (2,400Nm torque) and a massive 400.62kWh battery, delivering reliable performance with zero emissions. Its robust DL700 chassis, Dana axles (5.5T front/11.5T rear), and multi-leaf suspension support a max load of 31,000kg. Equipped with 4-speed AMT, AEBS+ESC safety systems, and a comfortable 2-seater cab with air suspension, this truck is ideal for mining and construction. Includes dual-gun charging and Beidou GPS tracking.
| 整车参数Basic Parameters | 总长（mm）
Total length( mm ) |
9650/10450 | 动力系统参数Power system | 电机型号
Motor model |
TZ460XSTQS001 |
| 总宽（mm）
Overall width( mm ) |
2550 | 电机生产厂
Motor manufacturer |
湖北普旺科技有限公司
Hubei Puwang Technology Co., Ltd. |
||
| 总高（mm）
Overall height( mm ) |
2980 | 位置/燃料形式
Location/Fuel Form |
中置/纯电动
Mid-mounted/Pure electric powered |
||
| 轴距（mm）
Wheelbase( mm ) |
2050+3800/4400+1350 | 电机形式
Motor form |
永磁同步电机
Permanent magnet synchronous motor |
||
| 前悬/后悬（mm）
Front/rear suspension ( mm ) |
1450/1100;1450/1200 | 电机额定/峰值功率（kW）
Motor rated/peak power ( kw ) |
315/450 | ||
| 接近角/离去角（º）
Approach angle/departure angle (°) |
18/30 | 额定/峰值转矩（N.m）
Rated/peak torque(Nm) |
1450/2400 | ||
| 整备质量（kg）
Curb weight ( kg ) |
12200/12500 | 电池总容量kWh
Total battery capacity ( kwh ) |
亿纬锂能400.62kWh；
后背双枪充电版； EVE Energy 400.62 kWh;Rear dual-gun charging version. |
||
| 最大总质量（kg）
Maximum total mass ( kg ) |
31000 | 续驶里程（40km/h匀速法）
Driving range (40 km /h constant speed method) |
>210km | ||
| 额定乘员数 （人）
Rated number of passengers (person) |
2 | 电池充电接口类型
Charging type |
国标接口
GB/T type |
||
| 最高车速（km/h）
Maximum speed ( km /h) |
85 | 是否支持换电式充电
Does it support battery swapping and charging? |
否
No |
||
| 轮距（前/后）（mm）
Track (front/rear)(mm) |
2030/2030/1860/1860 | ||||
| 最小改装长度（mm）
Minimum modification length (mm) |
6200-6800/7000-7600 | ||||
