LHD/RHD Dongfeng Zhizi 6X4 Tractor Head (EV)

Powerful & Zero-Emission Heavy-Duty Performance
Equipped with a 400kW permanent magnet motor delivering 1200 Nm of peak torque. This EV chassis provides robust pulling power for heavy loads up to 49 tons with zero tailpipe emissions.

2. Efficient Battery Swap System for Maximum Uptime
Features a 282kWh battery with a 250km range and a rapid Jinxing battery swap system. This enables quick battery exchanges, minimizing charging downtime and ensuring continuous fleet operation.

3. Robust & Durable Chassis for Demanding Logistics
Built on a high-strength 280 (8+4) steel frame with a 7T front axle and dual 10T rear axles. The multi-leaf spring suspension and air brakes are engineered for heavy loads and long-term reliability.

4. Driver-Focused & Comfortable RHD Cabin

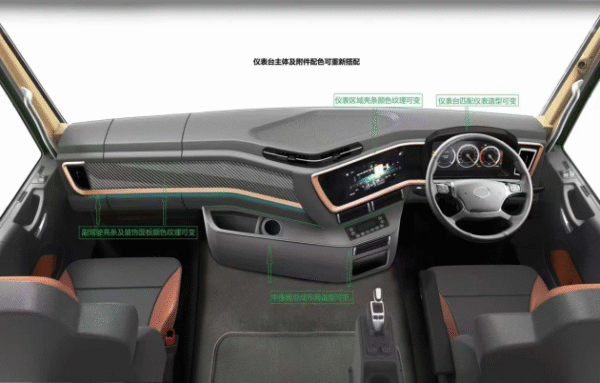

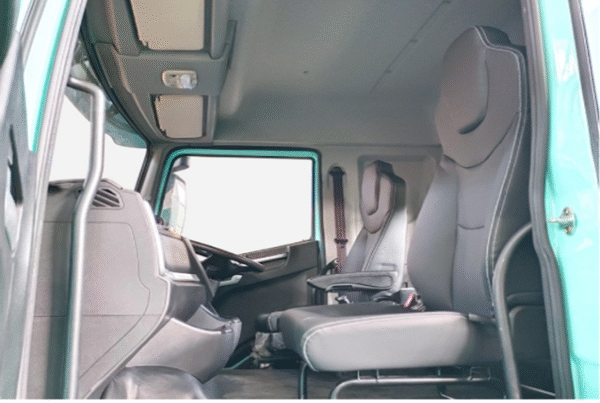

Offers a comfortable semi-high roof Qixing cab with a 4-point air-suspended driver’s seat, hydraulic tilting, air conditioning, and a multifunctional steering wheel for enhanced driver comfort on long hauls.

5. Advanced Safety & Integrated Fleet Technology
Comes standard with essential safety systems including ABS+ESC and comprehensive lighting. It features an integrated vehicle controller (500K bus rate) and is prepared for telematics (7-BOX) for modern fleet management.

The Dongfeng 6×4 EV Tractor Truck Chassis represents the forefront of modern, sustainable logistics. Engineered as a right-hand-drive swappable battery electric vehicle, it combines robust performance with zero-emission operation. Powered by a 400kW peak permanent magnet synchronous motor delivering 1200 Nm of torque, it ensures strong pulling power for heavy-duty applications. Its 282kWh lithium iron phosphate battery provides a reliable range of up to 250km under full load, supported by a rapid battery swap system for minimal operational downtime.

Built for durability, it features a high-strength 8+4 frame, a 7T front axle, and dual 10T wide-brake rear axles, ensuring stability with a maximum combination weight of 49 tons. The comfortable semi-high roof cab includes air conditioning, a multimedia system, and a 4-point air-suspension driver’s seat. Complete with comprehensive safety features like ABS+ESC and designed for efficient fleet integration, this EV tractor is an ideal solution for eco-conscious, cost-effective heavy transport.

整车参数Ba s ic Parameter s	总长 Total length( mm )	7810	动力系统Pow er sys tem	电机型号 Motor model	TZ368XSSF-SZF601/（S-011- GN01423）
	总宽 Overall width( mm )	2550		电机厂家 Motor manufacturer	法士特 Fast
	总高 Overall height( mm )	2980（不带导流罩，带导流罩 3500） 2980 (without air deflector , 3500 with air deflector)		位置/燃油形式 Location/Fuel Form	中置/ 磷酸铁锂电池 Mid-mounted/lithium iron phosphate battery
	轴距 Wheelbase( mm )	4475（中国计算法3800+1350）		电机形式Motor form	永磁同步电机 Permanent magnet synchronous motor
	前悬/后悬 Front/rear suspension ( mm )	1450/1825		电机额定/峰值功率Motor rated/peak power ( kw )	263/400
	接近角/离去角 Approach angle/departure angle ( °)	19/16		额定/峰值扭矩Rated/peak torque(Nm)	600/1200
	整备质量 Curb weight ( kg )	9800		电池总容量 Total battery capacity ( kwh )	282kWh Gotion CCS2
	最大总质量 Maximum total mass ( kg )	25000（加挂车最大总质量49000） 25000 (maximum gross combination weight with trailer: 49000)		续驶里程 Driving range (40 km /h constant speed method)	250（满载50 . 5T ,40km/h） 250(Fully loaded 50 . 5T , 40 km/h)
	额定乘员数 Rated number of passengers (person)	2		换电系统 Swapping system	玖行换电系统 Jiuxing battery swapping system
	最高车速 Maximum speed ( km /h)	89
	轮距（前/后） Track (front/rear)(mm)	1920/1880/1880
