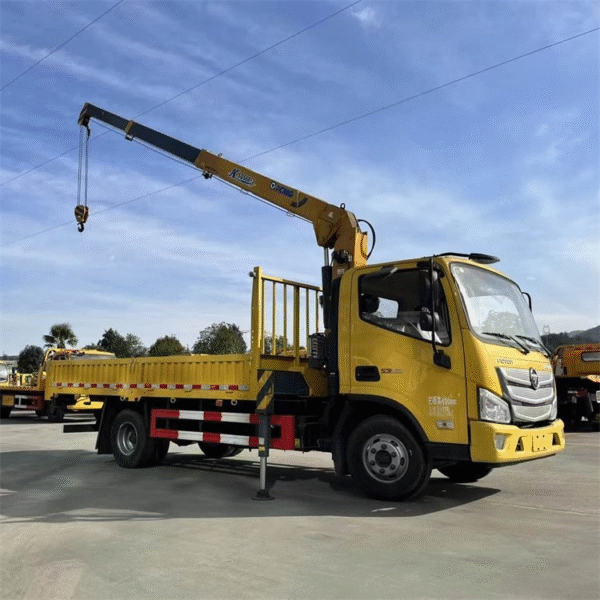

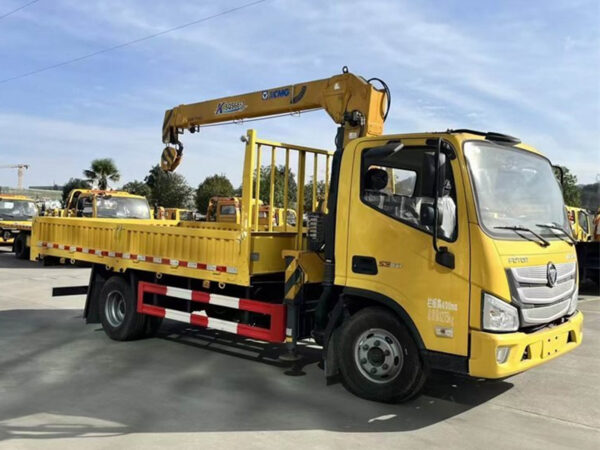

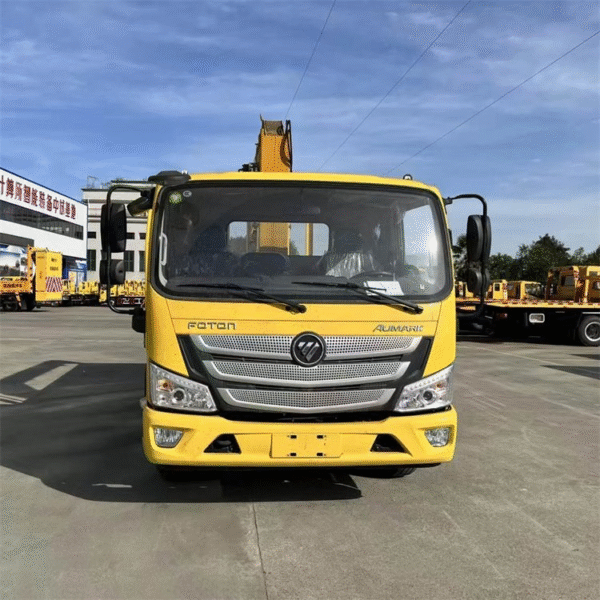

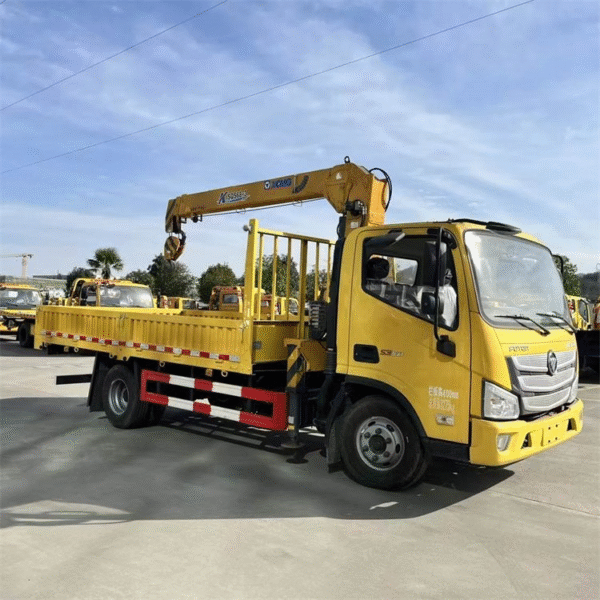

LHD/RHD Foton Crane Truck (Diesel)
-
Powerful & Efficient Performance – Equipped with a CUMMINS F3.8 diesel engine (123kW/141HP) and a 6-speed manual transmission, delivering strong power and fuel efficiency for demanding tasks.
-
Versatile 3.2T XCMG Crane – Features a high-capacity crane with a 7.7m max reach, 9.5m lifting height, and 360° rotation, ideal for loading, unloading, and material handling in tight spaces.
-
Durable & Heavy-Duty Build – Robust Q235 carbon steel cargo box (3mm bottom, 2mm sides) and air brake system ensure long-lasting performance under heavy workloads.
-
Optimized for Maneuverability – 4×2 drive, compact wheelbase (3360mm), and RHD configuration make it easy to operate in urban and industrial environments.
-
Customizable & Reliable – Available in custom colors and built with high-quality XCMG crane components, ensuring reliability for construction, logistics, and utility applications.
FOTON TRUCK WITH 3.2T XCMG CRANE is a versatile engineering vehicle equipped with an XCMG SQS68-3 3.2-ton straight-arm crane, suitable for various operational scenarios. The truck features a 4×2 drive configuration, powered by a CUMMINS F3.8s3141 diesel engine with 123kW output, paired with a 6-speed manual transmission. Key chassis specifications include a gross vehicle weight of 9000kg, a loading capacity of 3000kg, and a cargo box measuring 3600×2100×550mm. The crane offers a maximum working radius of 7.7 meters, a maximum lifting height of 9.5 meters, and 360-degree rotation capability. The vehicle is equipped with an air brake system and 7.50 R16 tires, with customizable color options. Production lead time is 50 working days.
| FOTON TRUCK WITH 3.2T XCMG CRANE 4X2 (RHD ) | |
| Parameters of chassis | |
| Cab | One and half row |
| Driving Type | Manual right hand drive |
| Drive Wheel | 4×2 |
| GVW | 9000(kg) |
| Curb weight | 4800(kg) |
| Loading capacity | 3000(kg) |
| Overall dimensions | 6600*2200*2850(mm) |
| Box dimensions | 3600*2100*550(mm) |
| Number of axles | 2 |
| Wheelbase | 3360(mm) |
| Axle loading | 2850/6000(kg) |
| Tire specification | 7.50 R16 |
| Number of tire | 6+1 |
| Brake system | Air brake |
