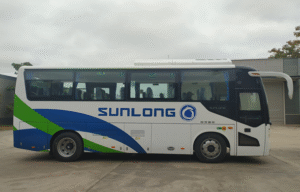

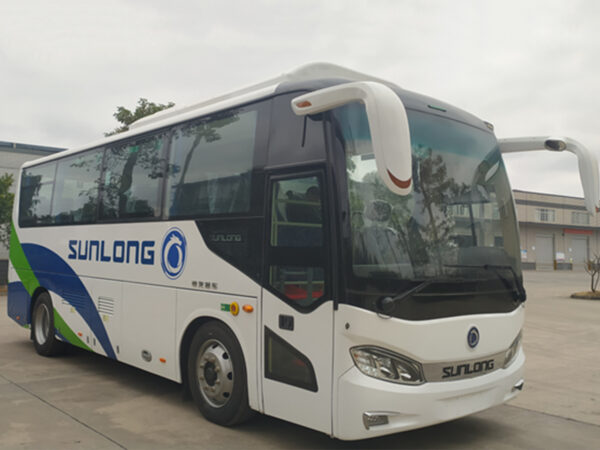

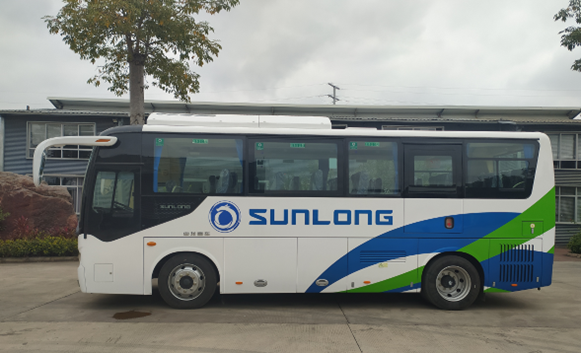

LHD Sunlong SLK6803 (EV)
-
Extended Range & Powerful Performance
Equipped with a high-capacity 169.2kWh lithium iron phosphate battery delivering 330km range, coupled with a 165kW (250kW peak) motor for efficient urban/suburban operation, ensuring reliable service without frequent charging. -
Optimized Passenger Capacity & Comfort

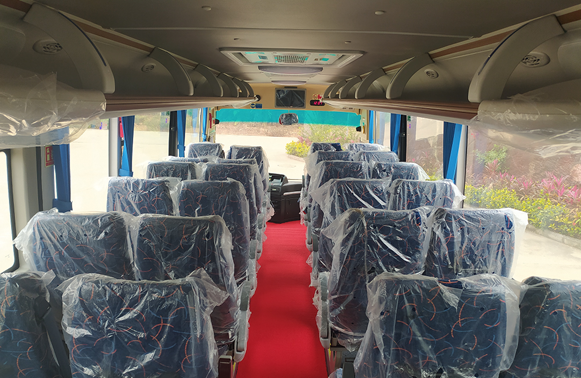

Designed for high-density routes with 36-passenger capacity, featuring ergonomic seating, 24,000kcal air conditioning, and NVH noise reduction technology for a quiet, comfortable commuting experience. -
Advanced Safety Systems
Includes ABS braking, automatic fire suppression, 5-camera monitoring, emergency exits, and battery protection structures, meeting stringent safety standards for public transport. -
Smart & Eco-Friendly Operation
Features CCS fast charging, CAN bus system, LED displays, and regenerative braking, combining zero-emission technology with intelligent energy management for sustainable transit solutions. -
Customizable Configurations
Offers optional air suspension, upgraded safety packages (ADAS, AEBS), and premium interiors to adapt to diverse operational needs while maintaining core reliability.
The Guangxi Sunlong HQK6803 is an 8-meter pure electric bus featuring a 169.2kWh LFP battery (330km range) and 165/250kW motor, designed for urban/suburban routes. With 36-passenger capacity, it offers air suspension (optional), ABS brakes, and 24,000kcal A/C. Key features include CCS charging, 5-camera monitoring, LED lighting, and crash-resistant glass. Safety highlights: automatic fire suppression, emergency exits, and battery protection. Designed for eco-friendly transit with NVH noise reduction and low-energy consumption.
| Basic Parameters | Model | Motor | Rated power ( kW ) | Peak power ( kW ) | Rated torque
( Nm ) |
Battery brand and capacity | Driving range (constant speed method) | Curb weight ( kg) | Maximum total mass ( kg) | Rated passenger capacity | ||
| HQK68 03UBEVU1 | Yuchai Direct drive | 165 | 250 | 1050 | Lithium iron phosphate 169.2 kWh | 330 km | 8500 | 14000 | 24-36 | |||
| Length ( mm ) | 8045 | Maximum speed Km/h | 100km | |||||||||
| Width ( mm ) | 2460 | Braking distance (v=30km/h) | ≤10 | |||||||||
| Height ( mm ) | 3400 (air conditioning) | Minimum turning diameter ( m ) | 18 | |||||||||
| Height inside the bus ( mm ) | 1930 | |||||||||||
| Wheelbase( mm ) | 4400 | Curb weight ( kg) | Complete vehicle | 8500 | ||||||||
| Front overhang / rear overhang( mm ) | 1815/1830 | |||||||||||
| Wheelbase front / rear ( mm ) | 2080/1800 | Maximum total mass ( kg) | Complete vehicle | 14000 | ||||||||
| Minimum ground clearance (mm) | 158 | Front axle / rear axle | 5000/9000 | |||||||||
| Approach angle / departure angle (°) | 12/16 | Motor position | Rear | |||||||||

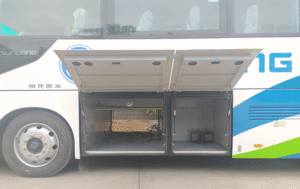

| Luggage compartment volume (m 3 ) | 2.4 | Maximum grade | 15 | |||||||||
