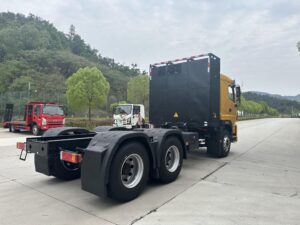

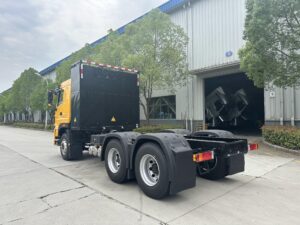

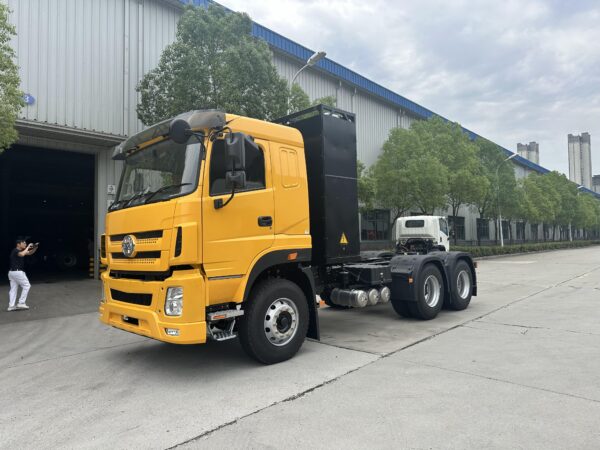

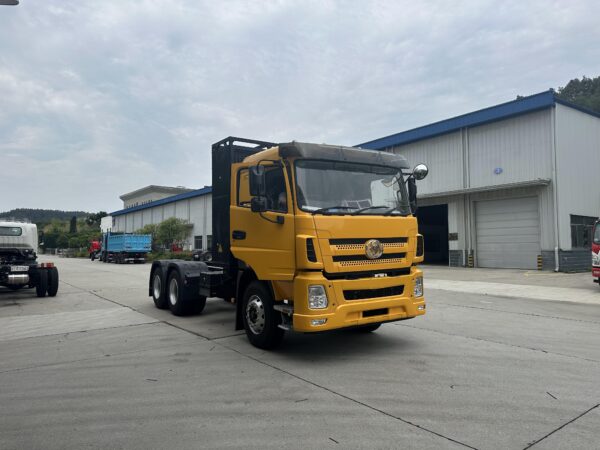

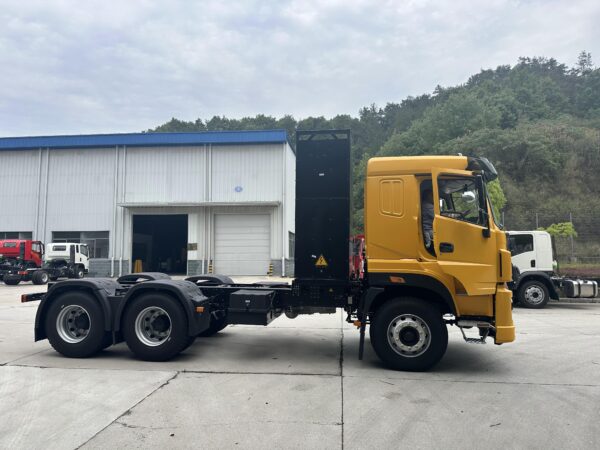

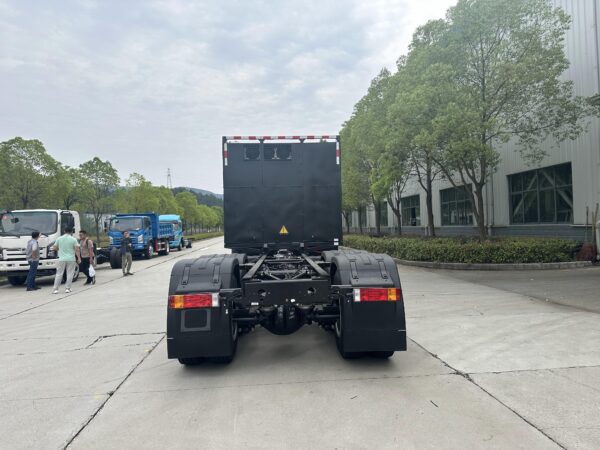

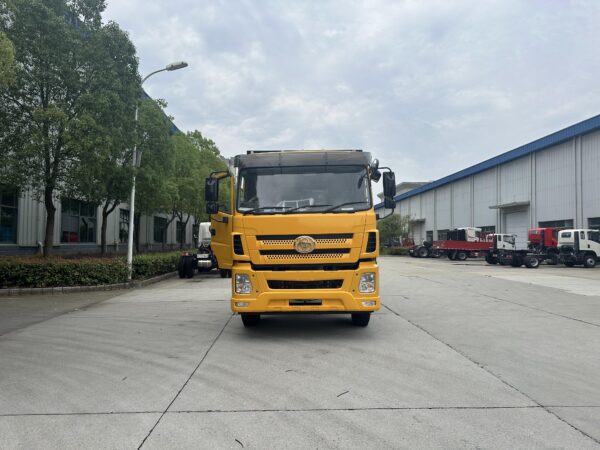

RHD Tri-ring 6×4 Swappable EV Cargo Truck (EV)
-
Powerful & Efficient Electric Drive – Equipped with a 250kW permanent magnet synchronous motor and lithium iron phosphate battery, delivering strong performance and a 250 km range (fully loaded at 50.5T).
-
Heavy-Duty Chassis & Axles – Features a 7T front axle + dual 10T rear axles, high-strength frame (280 8+4 plate), and Fast 4E200 gearbox for superior load capacity and durability.
-
Advanced Safety & Control – Includes ABS+ESC, air brakes, hydraulic power steering, and an in-house developed vehicle controller for reliable handling and safety.
-
Comfortable & Smart Cabin – T380A luxury cab with four-point air suspension, electric-hydraulic tilting, multifunction steering wheel, and multimedia system for driver comfort and convenience.
-
Flexible & Future-Ready – Supports battery swapping (optional), 500K bus rate for smart connectivity (T-BOX), and customizable options (e.g., deflectors, cameras, work lights) to meet diverse logistics needs.
The Tri-ring Yulong RHD 6X4 EV Truck Chassis is a high-performance electric truck chassis with a total length of 7,820 mm, width of 2,550 mm, and height of 3,520 mm (without air deflector) / 3,800 mm (with air deflector). It is equipped with a permanent magnet synchronous motor (rated power: 250 kW) and a lithium iron phosphate battery, offering a range of 250 km (fully loaded at 50.5T, 40 km/h).
The chassis features a 7T front axle and dual 10T middle/rear axles, paired with a Fast 4E200 gearbox and air brake system. The T380A semi-high roof luxury cab includes an electric-hydraulic tilting mechanism and four-point air suspension. Standard features include ABS+ESC, a multifunction steering wheel, and a multimedia system, with an optional battery-swapping system. Designed for efficient logistics transport, this truck delivers power, durability, and advanced technology.
| 整车参数Basic Parameters | 总长
Total length( mm ) |
7820 | 动力系统Power system | 电机型号
Motor model |
TZ368XSSF-SZF601/（S-011-GN01423） | |
| 总宽
Overall width( mm ) |
2550 | 电机厂家
Motor manufacturer |
法士特
Fast |
|||
| 总高
Overall height( mm ) |
3520（不带导流罩，带导流罩3800）
3520 (without air deflector, 3800 with air deflector) |
位置/燃油形式Location/Fuel Form | 中置/ 磷酸铁锂电池Mid-mounted/lithium iron phosphate battery | |||
| 轴距
Wheelbase( mm ) |
4475 | 电机形式
Motor form |
永磁同步电机
Permanent magnet synchronous motor |
|||
| 前悬/后悬
Front/rear suspension ( mm ) |
1520/1825 | 电机额定/峰值功率Motor rated/peak power ( kw ) | 263/400 | |||
| 接近角/离去角
Approach angle/departure angle (°) |
22/16 | 额定/峰值扭矩Rated/peak torque(Nm) | 600/1200 | |||
| 整备质量
Curb weight ( kg ) |
10400 | 电池总容量
Total battery capacity ( kwh ) |
391kWh Gotion CCS2 | |||
| 最大总质量
Maximum total mass ( kg ) |
25000（加挂车最大总质量49000）25000 (maximum gross combination weight with trailer: 49000) | 续驶里程
Driving range (40 km /h constant speed method) |
250（满载50.5T,40km/h）
250(Fully loaded 50.5T, 40 km/h) |
|||
| 额定乘员数
Rated number of passengers (person) |
2 | 换电系统
Swapping system |
玖行换电系统
Jiuxing battery swapping system |
|||
| 最高车速
Maximum speed ( km /h) |
100 | |||||
| 轮距（前/后）
Track (front/rear)(mm) |
2050/1880/1880 | |||||
