Tavol Folklift（Diesel/EV/LPG ））

Powerful Quanchai/Xinchai diesel engine ensures strong performance and reliability.
Zhongchai hydraulic gearbox offers smooth, flexible, and comfortable driving.
High lifting capacity up to 5 tons for heavy-duty operations.
Robust design ensures stability, safety, and long service life.
Easy maintenance and excellent adaptability for industrial environments.

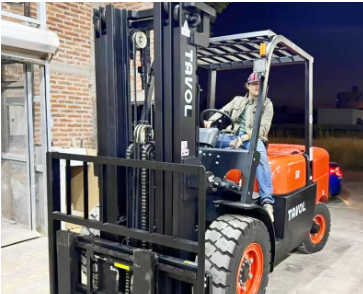

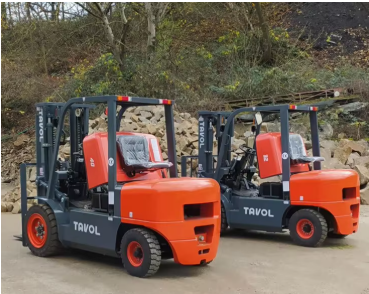

TAVOL Diesel Forklift
TAVOL diesel forklifts are powered by reliable Quanchai or Xinchai engines, delivering strong 36.8 kW output and excellent durability for heavy-duty use. Equipped with a Zhongchai hydraulic transmission gearbox, they ensure smooth shifting, stable performance, and comfortable operation. With lifting capacities from 2 to 5 tons and advanced design for stability, efficiency, and long service life, TAVOL forklifts are ideal for demanding industrial and logistics applications.

Fuel Type	Diesel	Diesel
Model	CPC30/ CPCD30	CPCD50
Rated Loading Capacity(kg)	3000	5000
Load Center Distance(mm)	500	500
Max Lifting Speed (Full load)(mm/s)	400	375
Max Driving Speed (Full/Empty load)(km/h)	18/20	20/24
Fork Lifting Height(mm)	3000	3000
Mast Tilt Angle (Forward and Backward)	6712*	6°/12°
Min. Turning Radius(mm)	2440	3000
Min. Ground Clearance(mm)	135	170
Length (including Fork)(mm)	3930	4350
Width(mm)	1230	1400
Height From Ground to Overhead Guard(mm)	2145	2330
Wheel Base(mm)	1700	2150
Front Wheel Track(mm)	1000	1180
Rear Wheel Track(mm)	970	1190
Front Wheel Tire	28#9-15	300-15
Rear Wheel Tire	6.50-10	7.00-12
Self Weight(kg)	4250	6800
Standard Fork Length(mm)	1220	1220
Engine Rated Power(kw)	36.8	60
Engine Speed at Rated Power(rpm)	2500	2400
Engine Maximum Torque(Nm)	177	300
Engine Speed at Maximum Torque(rpm)	1700	2000
